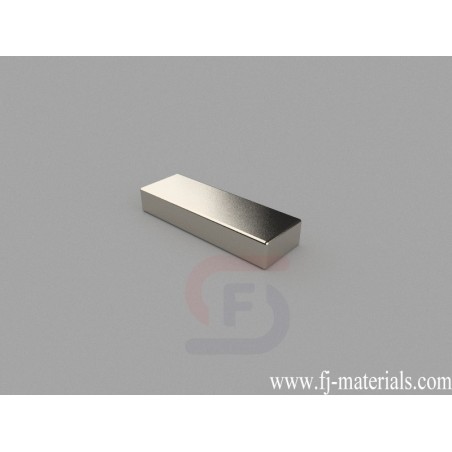

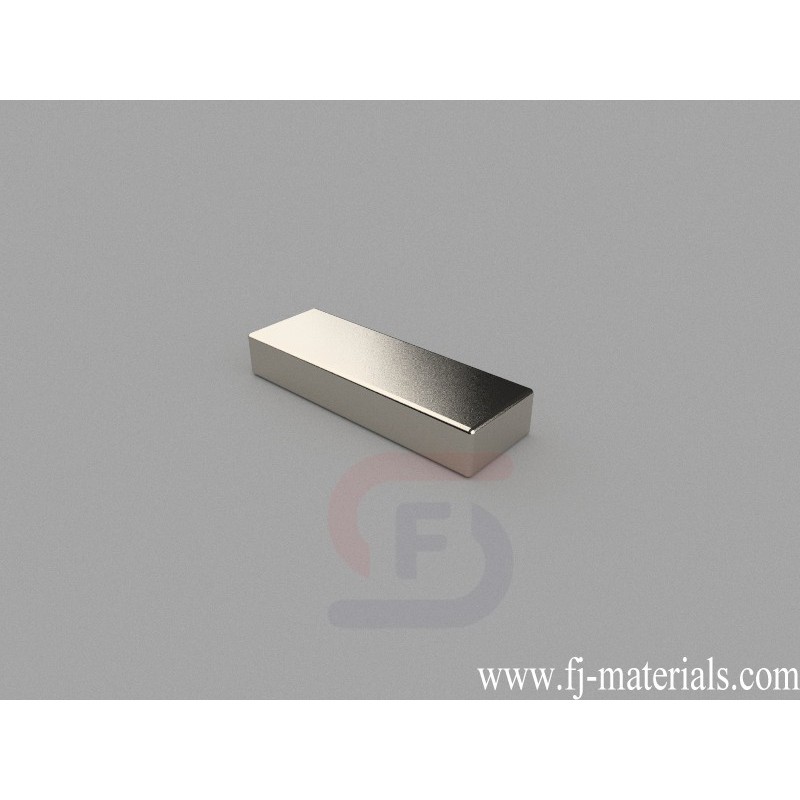

30x10x5mm Block Magnets | B30x10x5mm
B30x10x5mm Neodymium Magnet, 30 x 10 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x10x5mm, Thru Thickness magnetized. Pull force is approximately 13.57 lbs (6.17kg).
B30x10x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 30x10x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 13.57 lbs (6.17kg). Magnetization direction: Through Thickness
B30x10x5mm Neodymium Magnet, 30 x 10 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x10x5mm, Thru Thickness magnetized. Pull force is approximately 13.57 lbs (6.17kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B30x10x5mm
Data sheet
- Item Number
- B30x10x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 30x10x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 11.250g
- Pull Force
- 13.57 lbs (6.17kg)
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- D. 9.53-12.7mm
B30x10x5mm Neodymium Magnet, 30 x 10 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x10x5mm, Thru Thickness magnetized. Pull force is approximately 13.57 lbs (6.17kg).
