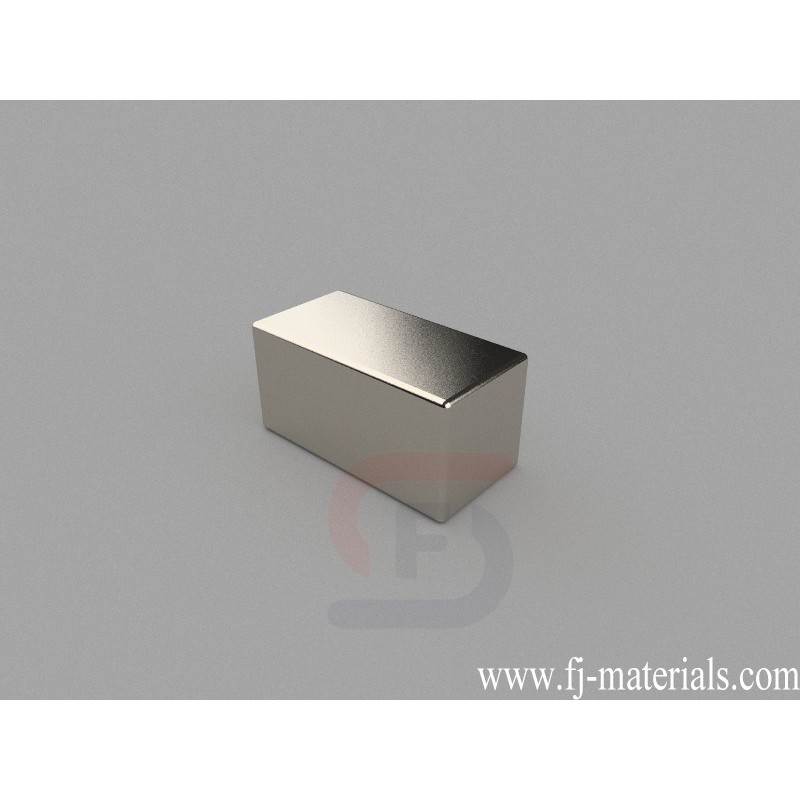

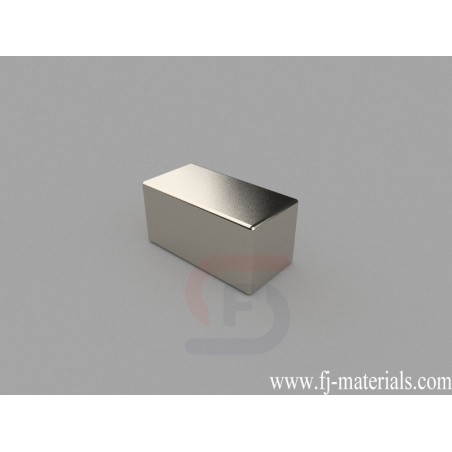

30x15x15mm Block Magnets | B30x15x15mm

B30x15x15mm Neodymium Magnet, 30 x 15 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x15x15mm, Thru Thickness magnetized. Pull force is approximately 49.84 lbs (22.66kg).

B30x15x15mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 30x15x15mm, Ni-Cu-Ni (Nickel) coating. Pull force: 49.84 lbs (22.66kg). Magnetization direction: Through Thickness

B30x15x15mm Neodymium Magnet, 30 x 15 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x15x15mm, Thru Thickness magnetized. Pull force is approximately 49.84 lbs (22.66kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B30x15x15mm

Data sheet

Item Number
B30x15x15mm
Material
NdFeB
Grade
N42
Size
30x15x15mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
50.625g
Pull Force
49.84 lbs (22.66kg)
Thickness
E. 12.7-19.05mm
Length
G. 25.4-50.8mm
Width
E. 12.7-19.05mm
