30x20x2mm Block Magnets | B30x20x2mm

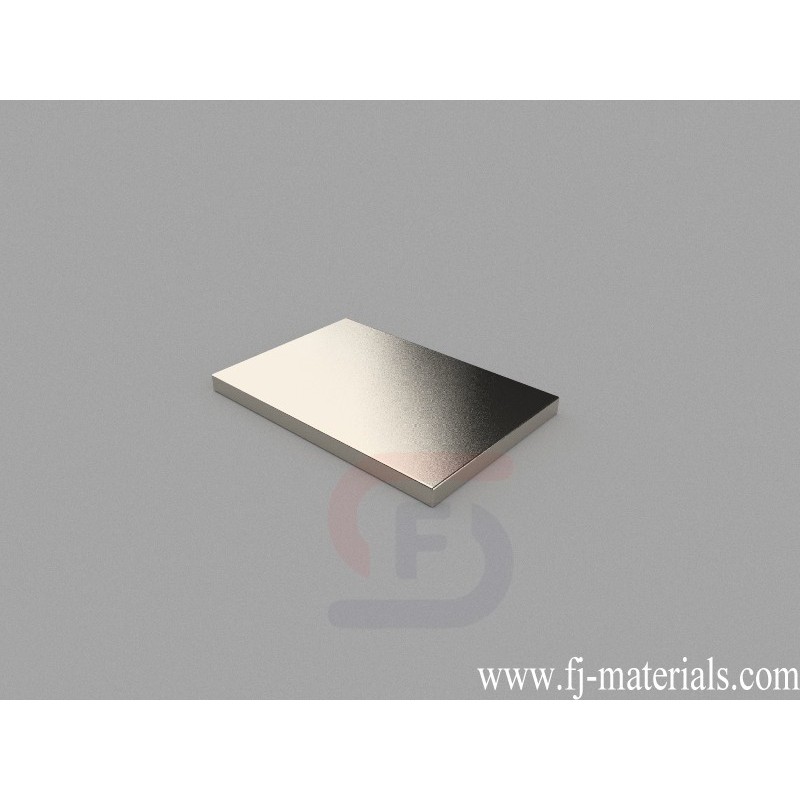

B30x20x2mm Neodymium Magnet, 30 x 20 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x20x2mm, Thru Thickness magnetized. Pull force is approximately 7.67 lbs (3.49kg).
B30x20x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 30x20x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 7.67 lbs (3.49kg). Magnetization direction: Through Thickness
B30x20x2mm Neodymium Magnet, 30 x 20 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x20x2mm, Thru Thickness magnetized. Pull force is approximately 7.67 lbs (3.49kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B30x20x2mm
Data sheet
- Item Number
- B30x20x2mm
- Material
- NdFeB
- Grade
- N42
- Size
- 30x20x2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 9.000g
- Pull Force
- 7.67 lbs (3.49kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
B30x20x2mm Neodymium Magnet, 30 x 20 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x20x2mm, Thru Thickness magnetized. Pull force is approximately 7.67 lbs (3.49kg).
