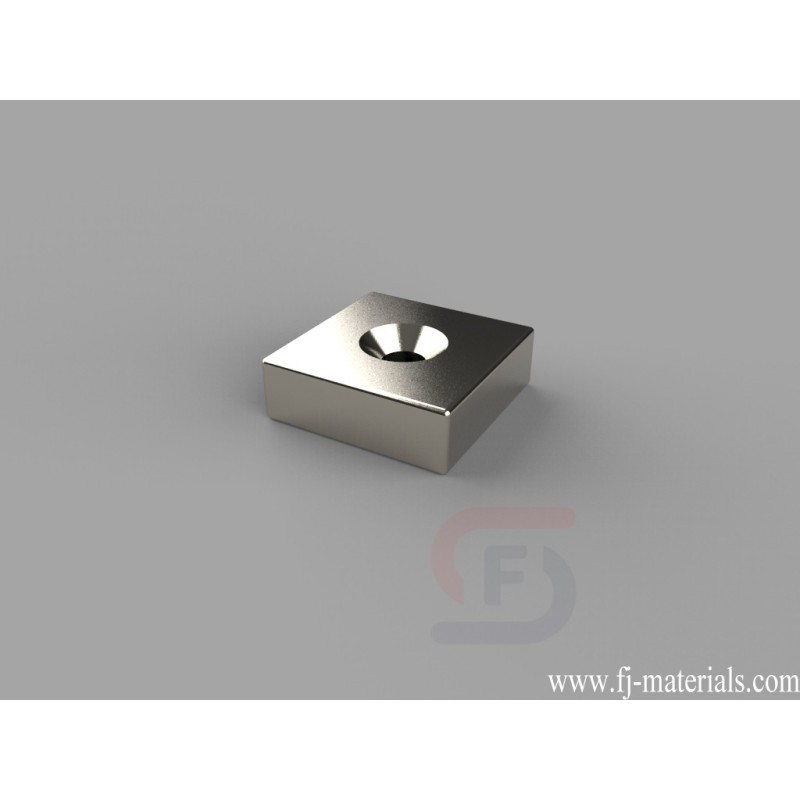

3/4 x 3/4 x 1/4 inch thick w/ countersunk hole to accept No. 6 screw Block Magnets | BCC4DCS
BCC4DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/4" thick w/ countersunk hole to accept #6 screw, Thru Thickness magnetized. Pull force is approximately 19.26 lbs.
Yiwu Fenjiao E-commerce Firm supply BCC4DCS Neodymium Block Magnets with high quality at competitive price.
BCC4DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/4" thick w/ countersunk hole to accept #6 screw, Thru Thickness magnetized. Pull force is approximately 19.26 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCC4DCS
Data sheet
- Item Number
- BCC4DCS
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/4" x 1/4" thick w/ countersunk hole to accept No. 6 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.572 oz. (16.21 g)
- Pull Force
- 19.26 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCC4DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/4" thick w/ countersunk hole to accept #6 screw, Thru Thickness magnetized. Pull force is approximately 19.26 lbs.
