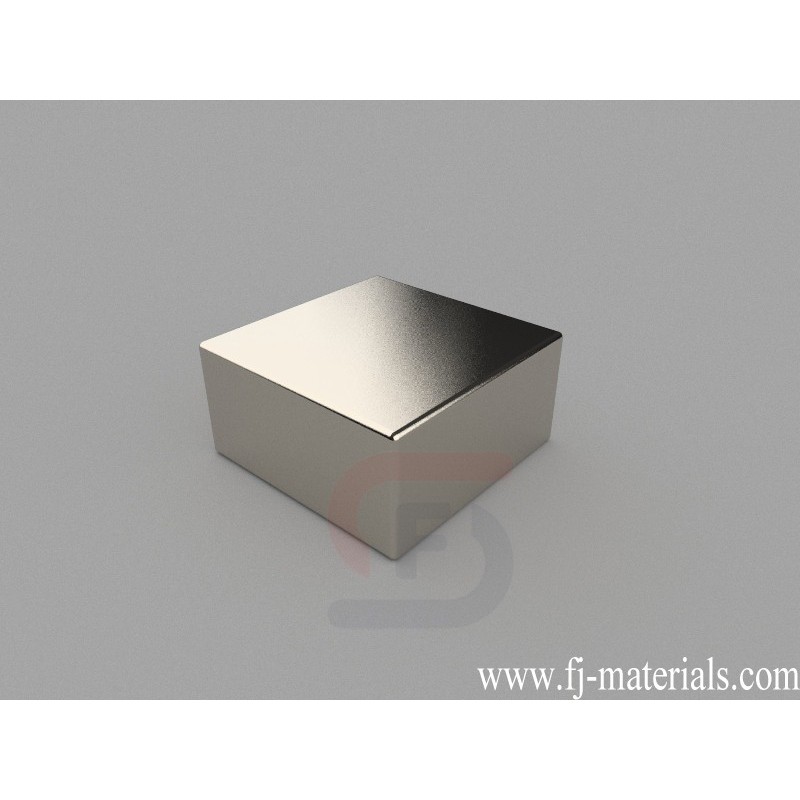

30x30x15mm Block Magnets | B30x30x15mm
B30x30x15mm Neodymium Magnet, 30 x 30 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x30x15mm, Thru Thickness magnetized. Pull force is approximately 70.49 lbs (32.04kg).
B30x30x15mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 30x30x15mm, Ni-Cu-Ni (Nickel) coating. Pull force: 70.49 lbs (32.04kg). Magnetization direction: Through Thickness
B30x30x15mm Neodymium Magnet, 30 x 30 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x30x15mm, Thru Thickness magnetized. Pull force is approximately 70.49 lbs (32.04kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B30x30x15mm
Data sheet
- Item Number
- B30x30x15mm
- Material
- NdFeB
- Grade
- N42
- Size
- 30x30x15mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 101.250g
- Pull Force
- 70.49 lbs (32.04kg)
- Thickness
- E. 12.7-19.05mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B30x30x15mm Neodymium Magnet, 30 x 30 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x30x15mm, Thru Thickness magnetized. Pull force is approximately 70.49 lbs (32.04kg).
