30x3x2mm Block Magnets | B30x3x2mm

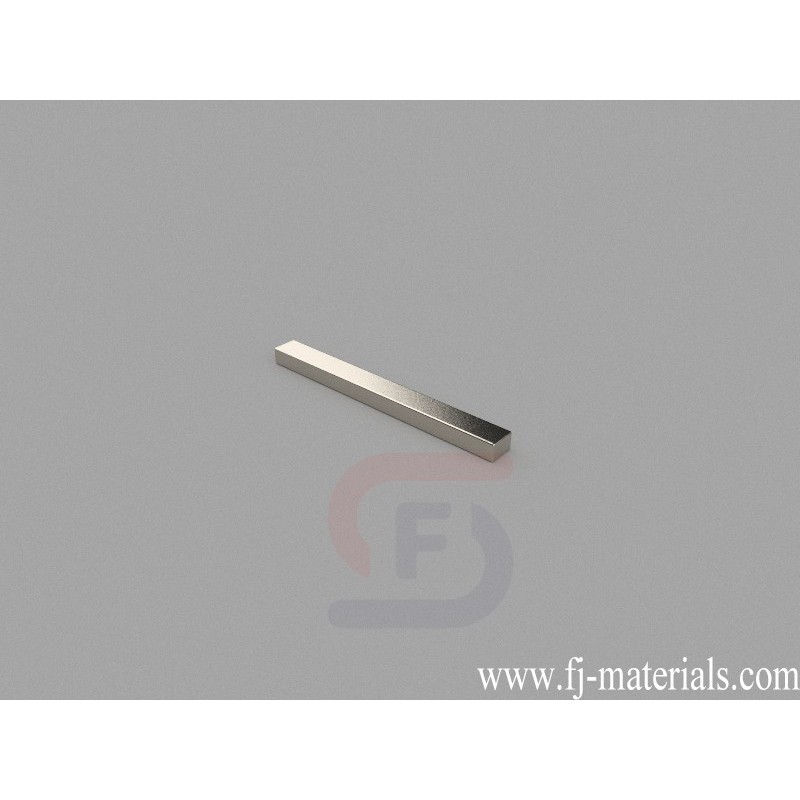

B30x3x2mm Neodymium Magnet, 30 x 3 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x3x2mm, Thru Thickness magnetized. Pull force is approximately 2.97 lbs (1.35kg).
B30x3x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 30x3x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 2.97 lbs (1.35kg). Magnetization direction: Through Thickness
B30x3x2mm Neodymium Magnet, 30 x 3 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x3x2mm, Thru Thickness magnetized. Pull force is approximately 2.97 lbs (1.35kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B30x3x2mm
Data sheet
- Item Number
- B30x3x2mm
- Material
- NdFeB
- Grade
- N42
- Size
- 30x3x2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.350g
- Pull Force
- 2.97 lbs (1.35kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- A. 0.00-3.18mm
B30x3x2mm Neodymium Magnet, 30 x 3 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 30x3x2mm, Thru Thickness magnetized. Pull force is approximately 2.97 lbs (1.35kg).
