35x11x5mm Block Magnets | B35x11x5mm

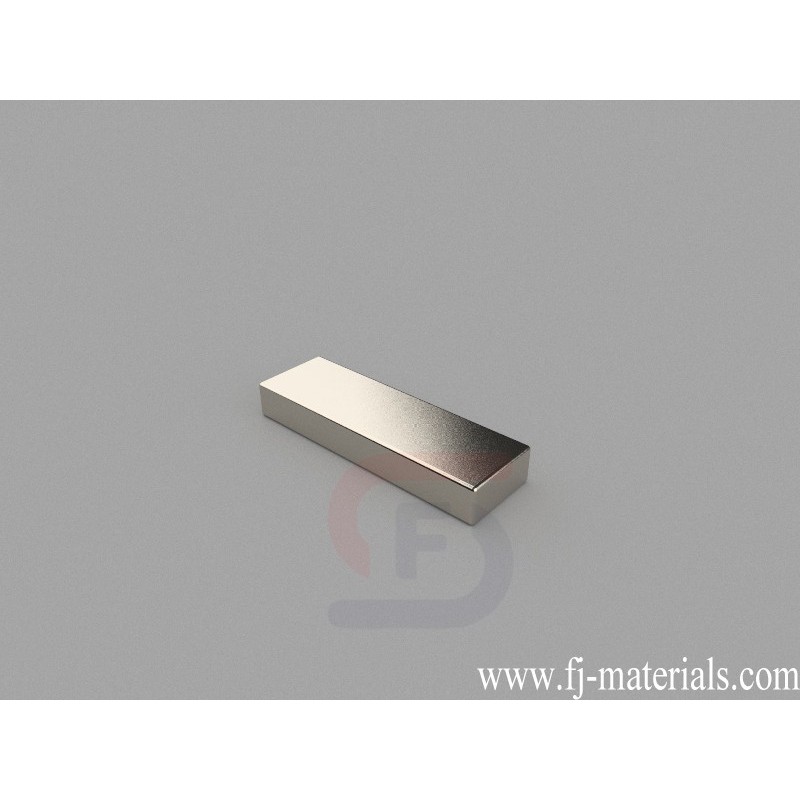

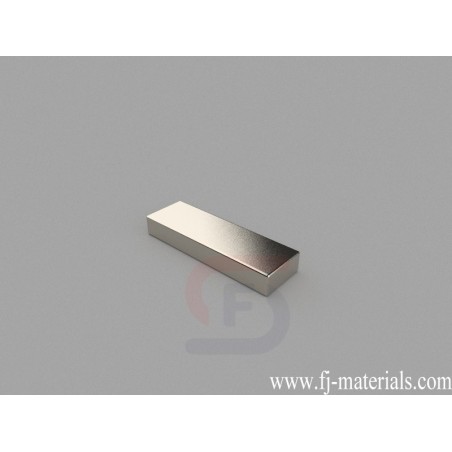

B35x11x5mm Neodymium Magnet, 35 x 11 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35x11x5mm, Thru Thickness magnetized. Pull force is approximately 15.37 lbs (6.99kg).
B35x11x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 35x11x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 15.37 lbs (6.99kg). Magnetization direction: Through Thickness
B35x11x5mm Neodymium Magnet, 35 x 11 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35x11x5mm, Thru Thickness magnetized. Pull force is approximately 15.37 lbs (6.99kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B35x11x5mm
Data sheet
- Item Number
- B35x11x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 35x11x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 14.438g
- Pull Force
- 15.37 lbs (6.99kg)
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- D. 9.53-12.7mm
B35x11x5mm Neodymium Magnet, 35 x 11 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35x11x5mm, Thru Thickness magnetized. Pull force is approximately 15.37 lbs (6.99kg).
