35x15x3mm Block Magnets | B35x15x3mm

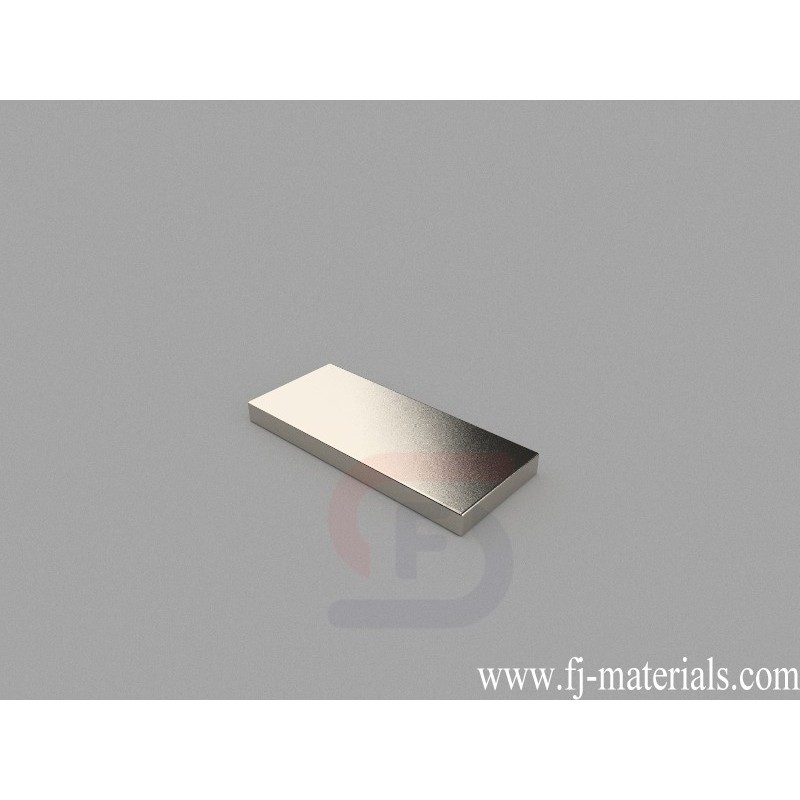

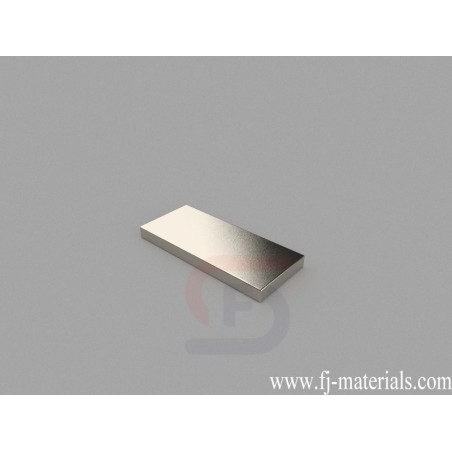

B35x15x3mm Neodymium Magnet, 35 x 15 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35x15x3mm, Thru Thickness magnetized. Pull force is approximately 10.77 lbs (4.89kg).

B35x15x3mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 35x15x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 10.77 lbs (4.89kg). Magnetization direction: Through Thickness

B35x15x3mm Neodymium Magnet, 35 x 15 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35x15x3mm, Thru Thickness magnetized. Pull force is approximately 10.77 lbs (4.89kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B35x15x3mm

Data sheet

Item Number
B35x15x3mm
Material
NdFeB
Grade
N42
Size
35x15x3mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
11.813g
Pull Force
10.77 lbs (4.89kg)
Thickness
A. 0.00-3.18mm
Length
G. 25.4-50.8mm
Width
E. 12.7-19.05mm
