36x3.4x2.6mm Block Magnets | B36x3.4x2.6mm

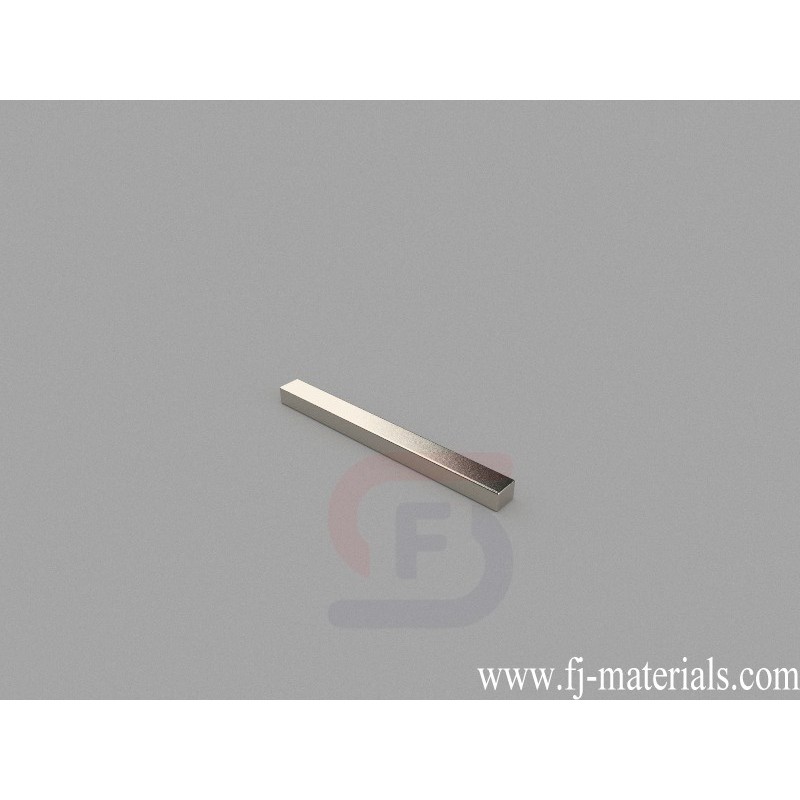

B36x3.4x2.6mm Neodymium Magnet, 36 x 3.4 x 2.6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 36x3.4x2.6mm, Thru Thickness magnetized. Pull force is approximately 4.51 lbs (2.05kg).
B36x3.4x2.6mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 36x3.4x2.6mm, Ni-Cu-Ni (Nickel) coating. Pull force: 4.51 lbs (2.05kg). Magnetization direction: Through Thickness
B36x3.4x2.6mm Neodymium Magnet, 36 x 3.4 x 2.6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 36x3.4x2.6mm, Thru Thickness magnetized. Pull force is approximately 4.51 lbs (2.05kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B36x3.4x2.6mm
Data sheet
- Item Number
- B36x3.4x2.6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 36x3.4x2.6mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.387g
- Pull Force
- 4.51 lbs (2.05kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- B. 3.18-6.35mm
B36x3.4x2.6mm Neodymium Magnet, 36 x 3.4 x 2.6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 36x3.4x2.6mm, Thru Thickness magnetized. Pull force is approximately 4.51 lbs (2.05kg).
