3x1.5x1mm Block Magnets | B3x1.5x1mm

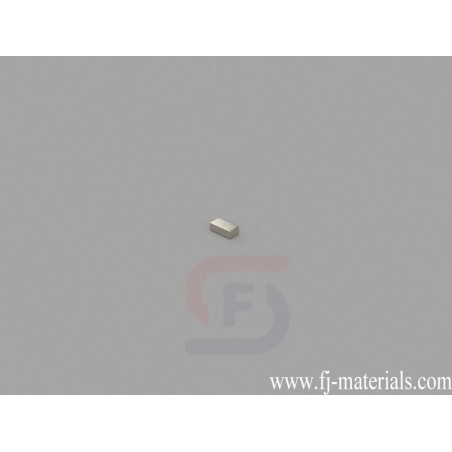

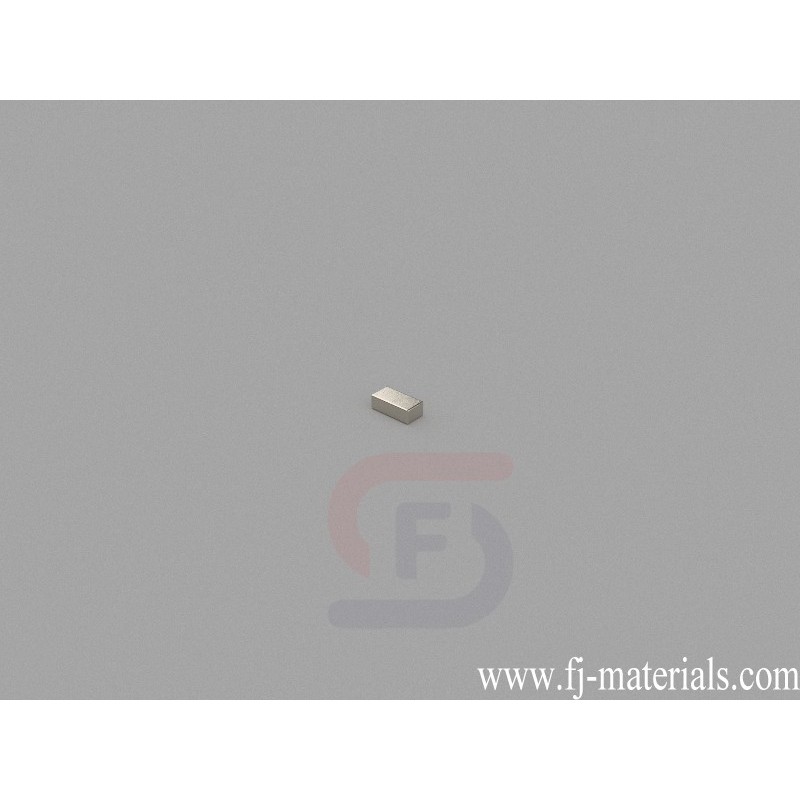

B3x1.5x1mm Neodymium Magnet, 3 x 1.5 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3x1.5x1mm, Thru Thickness magnetized. Pull force is approximately 0.33 lbs (0.15kg).
B3x1.5x1mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 3x1.5x1mm, Ni-Cu-Ni (Nickel) coating. Pull force: 0.33 lbs (0.15kg). Magnetization direction: Through Thickness
B3x1.5x1mm Neodymium Magnet, 3 x 1.5 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3x1.5x1mm, Thru Thickness magnetized. Pull force is approximately 0.33 lbs (0.15kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B3x1.5x1mm
Data sheet
- Item Number
- B3x1.5x1mm
- Material
- NdFeB
- Grade
- N42
- Size
- 3x1.5x1mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.034g
- Pull Force
- 0.33 lbs (0.15kg)
- Thickness
- A. 0.00-3.18mm
- Length
- A. 0.00-3.18mm
- Width
- A. 0.00-3.18mm
B3x1.5x1mm Neodymium Magnet, 3 x 1.5 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3x1.5x1mm, Thru Thickness magnetized. Pull force is approximately 0.33 lbs (0.15kg).
