40x15x5mm Block Magnets | B40x15x5mm

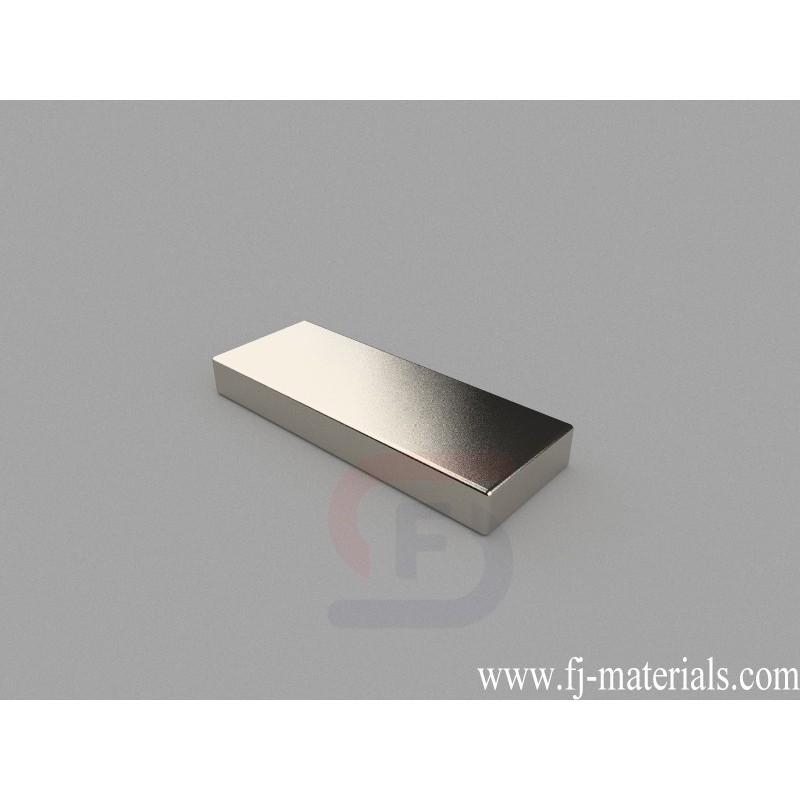

B40x15x5mm Neodymium Magnet, 40 x 15 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x15x5mm, Thru Thickness magnetized. Pull force is approximately 19.18 lbs (8.72kg).

B40x15x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 40x15x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 19.18 lbs (8.72kg). Magnetization direction: Through Thickness

B40x15x5mm Neodymium Magnet, 40 x 15 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x15x5mm, Thru Thickness magnetized. Pull force is approximately 19.18 lbs (8.72kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B40x15x5mm

Data sheet

Item Number
B40x15x5mm
Material
NdFeB
Grade
N42
Size
40x15x5mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
22.500g
Pull Force
19.18 lbs (8.72kg)
Thickness
B. 3.18-6.35mm
Length
G. 25.4-50.8mm
Width
E. 12.7-19.05mm
