40x20x10mm Block Magnets | B40x20x10mm

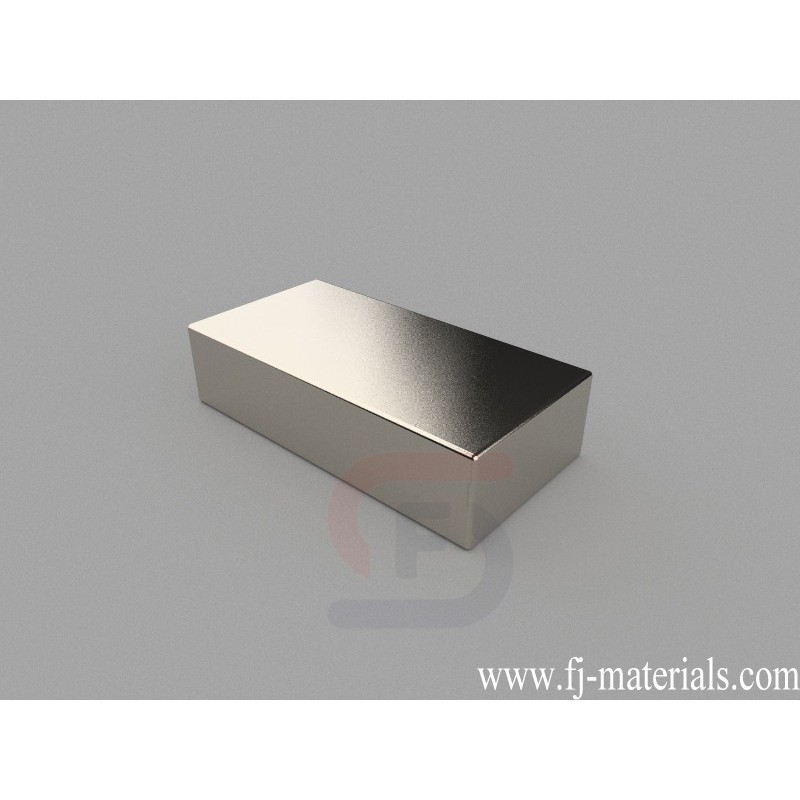

B40x20x10mm Neodymium Magnet, 40 x 20 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x20x10mm, Thru Thickness magnetized. Pull force is approximately 44.31 lbs (20.14kg).

B40x20x10mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 40x20x10mm, Ni-Cu-Ni (Nickel) coating. Pull force: 44.31 lbs (20.14kg). Magnetization direction: Through Thickness

B40x20x10mm Neodymium Magnet, 40 x 20 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x20x10mm, Thru Thickness magnetized. Pull force is approximately 44.31 lbs (20.14kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B40x20x10mm

Data sheet

Item Number
B40x20x10mm
Material
NdFeB
Grade
N42
Size
40x20x10mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
60.000g
Pull Force
44.31 lbs (20.14kg)
Thickness
D. 9.53-12.7mm
Length
G. 25.4-50.8mm
Width
F. 19.05-25.4mm
