40x20x1mm Block Magnets | B40x20x1mm

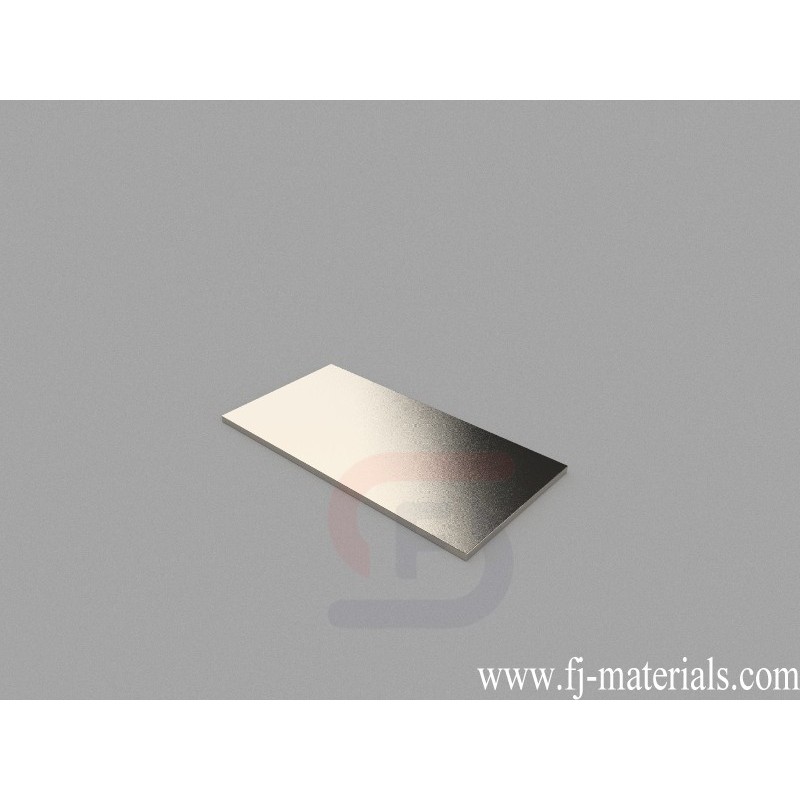

B40x20x1mm Neodymium Magnet, 40 x 20 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x20x1mm, Thru Thickness magnetized. Pull force is approximately 4.43 lbs (2.01kg).
B40x20x1mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 40x20x1mm, Ni-Cu-Ni (Nickel) coating. Pull force: 4.43 lbs (2.01kg). Magnetization direction: Through Thickness
B40x20x1mm Neodymium Magnet, 40 x 20 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x20x1mm, Thru Thickness magnetized. Pull force is approximately 4.43 lbs (2.01kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B40x20x1mm
Data sheet
- Item Number
- B40x20x1mm
- Material
- NdFeB
- Grade
- N42
- Size
- 40x20x1mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 6.000g
- Pull Force
- 4.43 lbs (2.01kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
B40x20x1mm Neodymium Magnet, 40 x 20 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40x20x1mm, Thru Thickness magnetized. Pull force is approximately 4.43 lbs (2.01kg).
