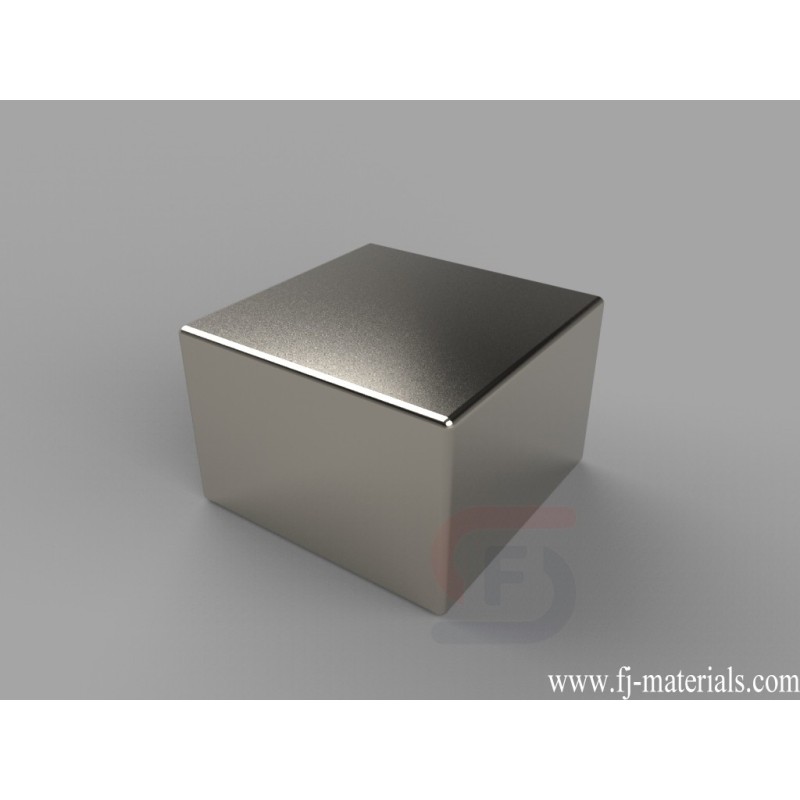

3/4 x 3/4 x 1/2 inch thick Block Magnets | BCC8-N52
BCC8-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 42.66 lbs.
Yiwu Fenjiao E-commerce Firm supply BCC8-N52 Neodymium Block Magnets with high quality at competitive price.
BCC8-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 42.66 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCC8-N52
Data sheet
- Item Number
- BCC8-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 3/4" x 3/4" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.22 oz. (34.57 g)
- Pull Force
- 42.66 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCC8-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 42.66 lbs.
