45x45x37.5mm Block Magnets | B45x45x37.5mm

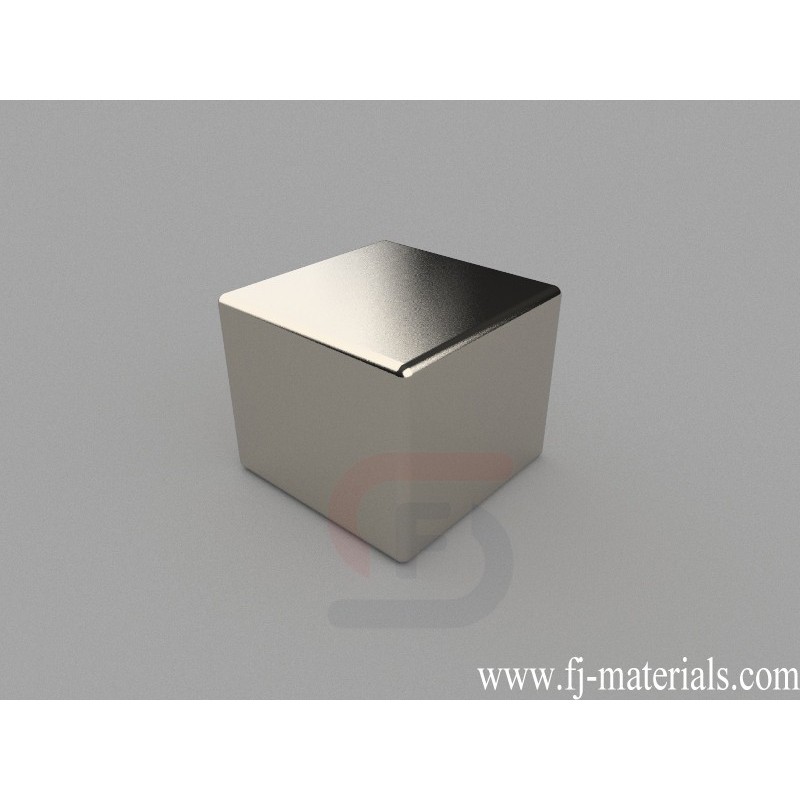

B45x45x37.5mm Neodymium Magnet, 45 x 45 x 37.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 45x45x37.5mm, Thru Thickness magnetized. Pull force is approximately 264.33 lbs (120.15kg).
B45x45x37.5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 45x45x37.5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 264.33 lbs (120.15kg). Magnetization direction: Through Thickness
B45x45x37.5mm Neodymium Magnet, 45 x 45 x 37.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 45x45x37.5mm, Thru Thickness magnetized. Pull force is approximately 264.33 lbs (120.15kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B45x45x37.5mm
Data sheet
- Item Number
- B45x45x37.5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 45x45x37.5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 569.531g
- Pull Force
- 264.33 lbs (120.15kg)
- Thickness
- G. 25.4-50.8mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B45x45x37.5mm Neodymium Magnet, 45 x 45 x 37.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 45x45x37.5mm, Thru Thickness magnetized. Pull force is approximately 264.33 lbs (120.15kg).
