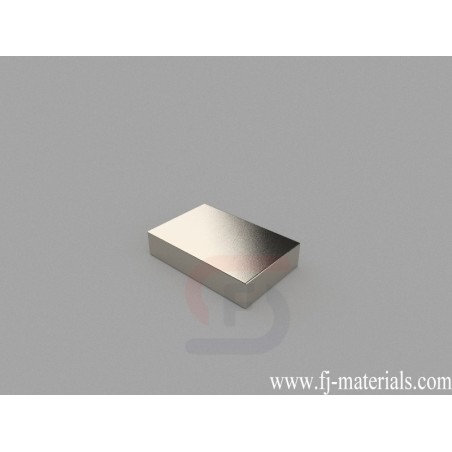

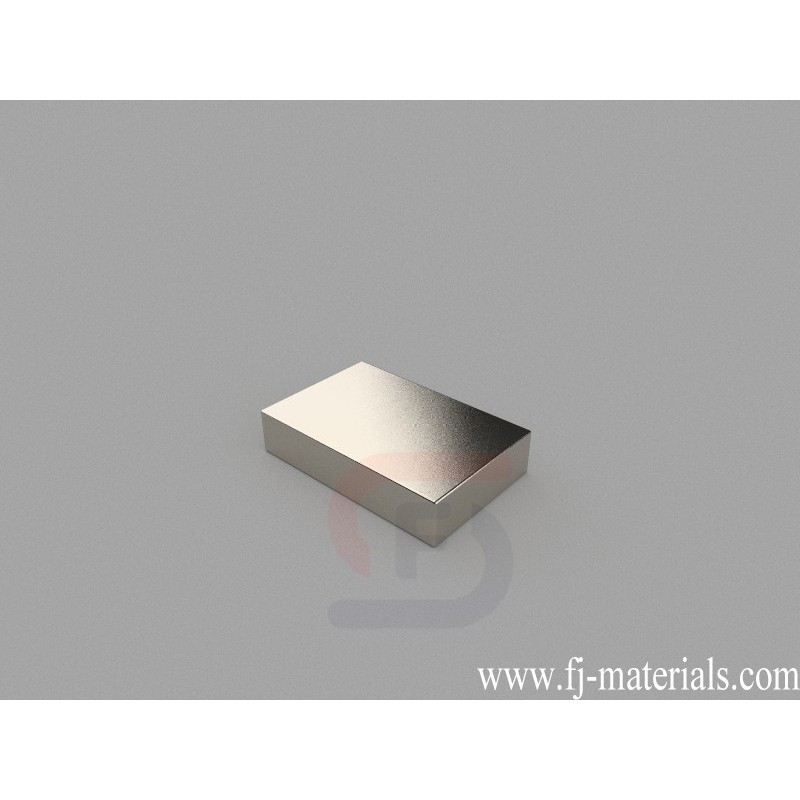

46x30x10mm Block Magnets | B46x30x10mm
B46x30x10mm Neodymium Magnet, 46 x 30 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 46x30x10mm, Thru Thickness magnetized. Pull force is approximately 58.19 lbs (26.45kg).
B46x30x10mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 46x30x10mm, Ni-Cu-Ni (Nickel) coating. Pull force: 58.19 lbs (26.45kg). Magnetization direction: Through Thickness
B46x30x10mm Neodymium Magnet, 46 x 30 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 46x30x10mm, Thru Thickness magnetized. Pull force is approximately 58.19 lbs (26.45kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B46x30x10mm
Data sheet
- Item Number
- B46x30x10mm
- Material
- NdFeB
- Grade
- N42
- Size
- 46x30x10mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 103.500g
- Pull Force
- 58.19 lbs (26.45kg)
- Thickness
- D. 9.53-12.7mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B46x30x10mm Neodymium Magnet, 46 x 30 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 46x30x10mm, Thru Thickness magnetized. Pull force is approximately 58.19 lbs (26.45kg).
