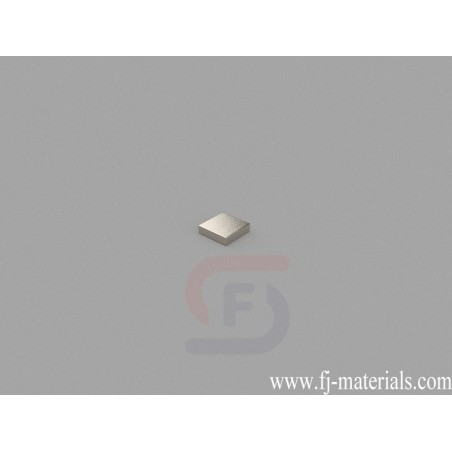

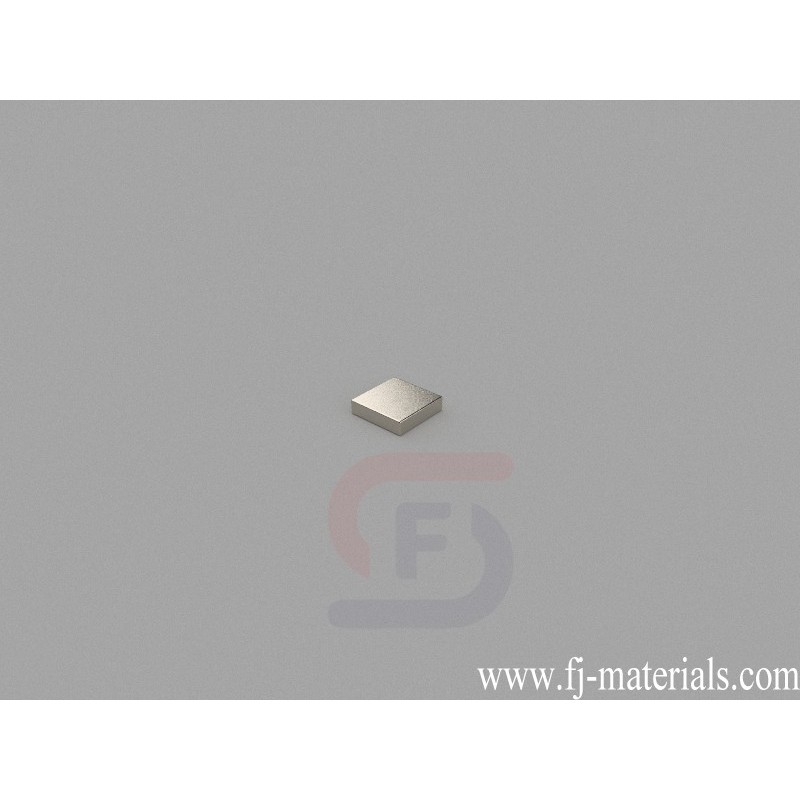

4x4x1mm Block Magnets | B4x4x1mm
B4x4x1mm Neodymium Magnet, 4 x 4 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4x4x1mm, Thru Thickness magnetized. Pull force is approximately 0.63 lbs (0.28kg).
B4x4x1mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 4x4x1mm, Ni-Cu-Ni (Nickel) coating. Pull force: 0.63 lbs (0.28kg). Magnetization direction: Through Thickness
B4x4x1mm Neodymium Magnet, 4 x 4 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4x4x1mm, Thru Thickness magnetized. Pull force is approximately 0.63 lbs (0.28kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B4x4x1mm
Data sheet
- Item Number
- B4x4x1mm
- Material
- NdFeB
- Grade
- N42
- Size
- 4x4x1mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.120g
- Pull Force
- 0.63 lbs (0.28kg)
- Thickness
- A. 0.00-3.18mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B4x4x1mm Neodymium Magnet, 4 x 4 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4x4x1mm, Thru Thickness magnetized. Pull force is approximately 0.63 lbs (0.28kg).
