50x10x1.5mm Block Magnets | B50x10x1.5mm

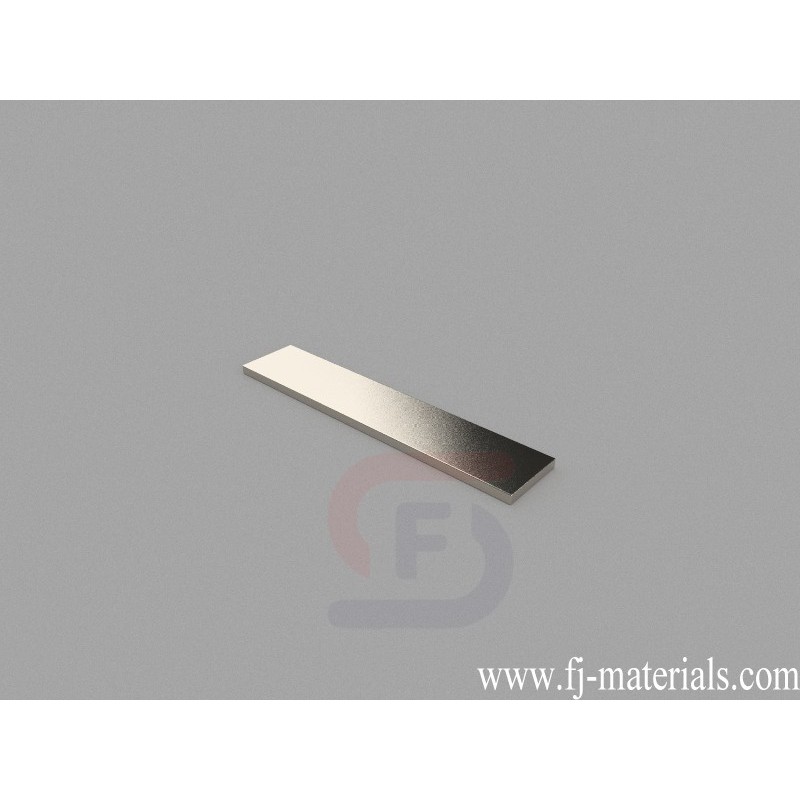

B50x10x1.5mm Neodymium Magnet, 50 x 10 x 1.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x1.5mm, Thru Thickness magnetized. Pull force is approximately 5.25 lbs (2.39kg).
B50x10x1.5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x10x1.5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 5.25 lbs (2.39kg). Magnetization direction: Through Thickness
B50x10x1.5mm Neodymium Magnet, 50 x 10 x 1.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x1.5mm, Thru Thickness magnetized. Pull force is approximately 5.25 lbs (2.39kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B50x10x1.5mm
Data sheet
- Item Number
- B50x10x1.5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50x10x1.5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 5.625g
- Pull Force
- 5.25 lbs (2.39kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- D. 9.53-12.7mm
B50x10x1.5mm Neodymium Magnet, 50 x 10 x 1.5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x1.5mm, Thru Thickness magnetized. Pull force is approximately 5.25 lbs (2.39kg).
