50x10x4mm Block Magnets | B50x10x4mm

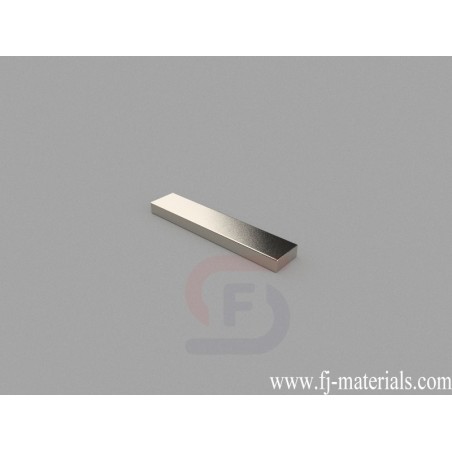

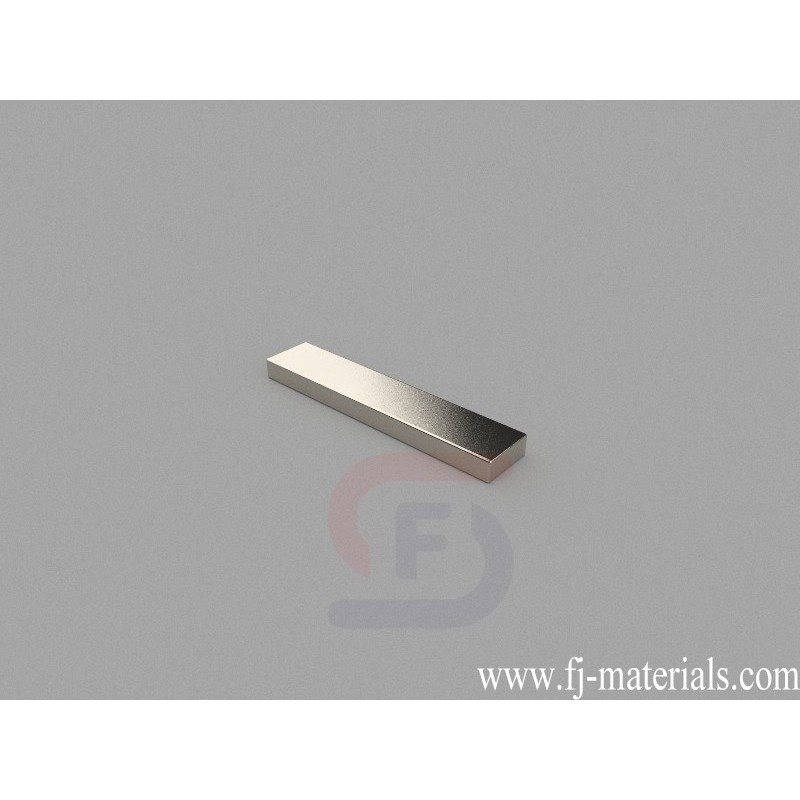

B50x10x4mm Neodymium Magnet, 50 x 10 x 4mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x4mm, Thru Thickness magnetized. Pull force is approximately 14.01 lbs (6.37kg).
B50x10x4mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x10x4mm, Ni-Cu-Ni (Nickel) coating. Pull force: 14.01 lbs (6.37kg). Magnetization direction: Through Thickness
B50x10x4mm Neodymium Magnet, 50 x 10 x 4mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x4mm, Thru Thickness magnetized. Pull force is approximately 14.01 lbs (6.37kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B50x10x4mm
Data sheet
- Item Number
- B50x10x4mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50x10x4mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 15.000g
- Pull Force
- 14.01 lbs (6.37kg)
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- D. 9.53-12.7mm
B50x10x4mm Neodymium Magnet, 50 x 10 x 4mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x10x4mm, Thru Thickness magnetized. Pull force is approximately 14.01 lbs (6.37kg).
