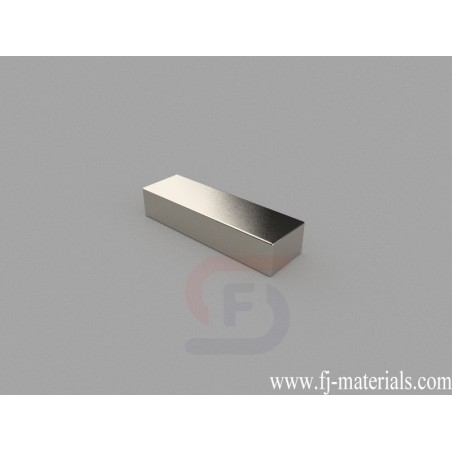

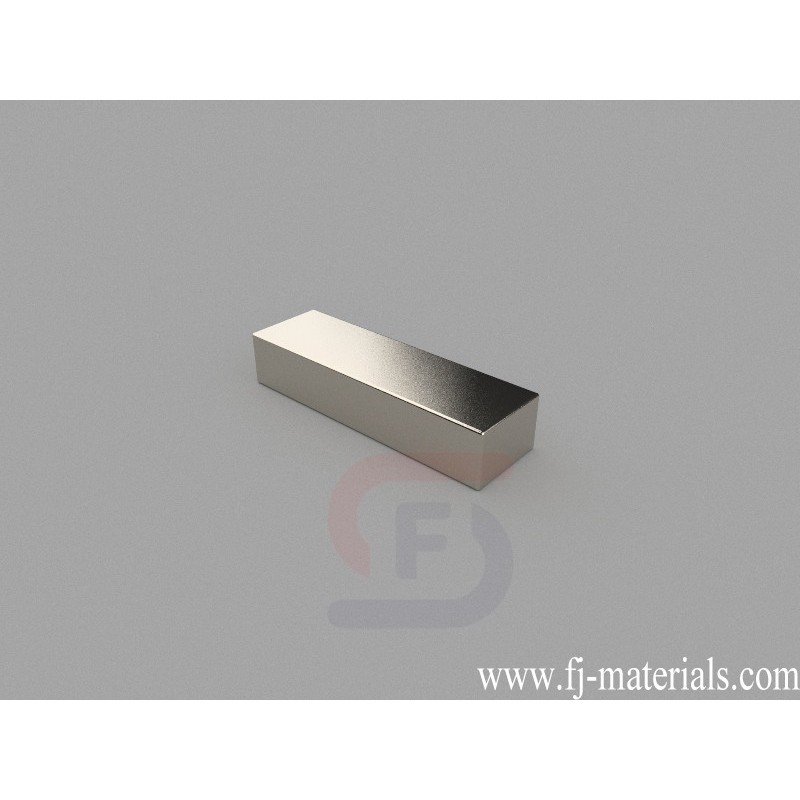

50x15x10mm Block Magnets | B50x15x10mm
B50x15x10mm Neodymium Magnet, 50 x 15 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x15x10mm, Thru Thickness magnetized. Pull force is approximately 42.90 lbs (19.50kg).
B50x15x10mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x15x10mm, Ni-Cu-Ni (Nickel) coating. Pull force: 42.90 lbs (19.50kg). Magnetization direction: Through Thickness
B50x15x10mm Neodymium Magnet, 50 x 15 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x15x10mm, Thru Thickness magnetized. Pull force is approximately 42.90 lbs (19.50kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B50x15x10mm
Data sheet
- Item Number
- B50x15x10mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50x15x10mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 56.250g
- Pull Force
- 42.90 lbs (19.50kg)
- Thickness
- D. 9.53-12.7mm
- Length
- G. 25.4-50.8mm
- Width
- E. 12.7-19.05mm
B50x15x10mm Neodymium Magnet, 50 x 15 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x15x10mm, Thru Thickness magnetized. Pull force is approximately 42.90 lbs (19.50kg).
