50x25x3mm Block Magnets | B50x25x3mm

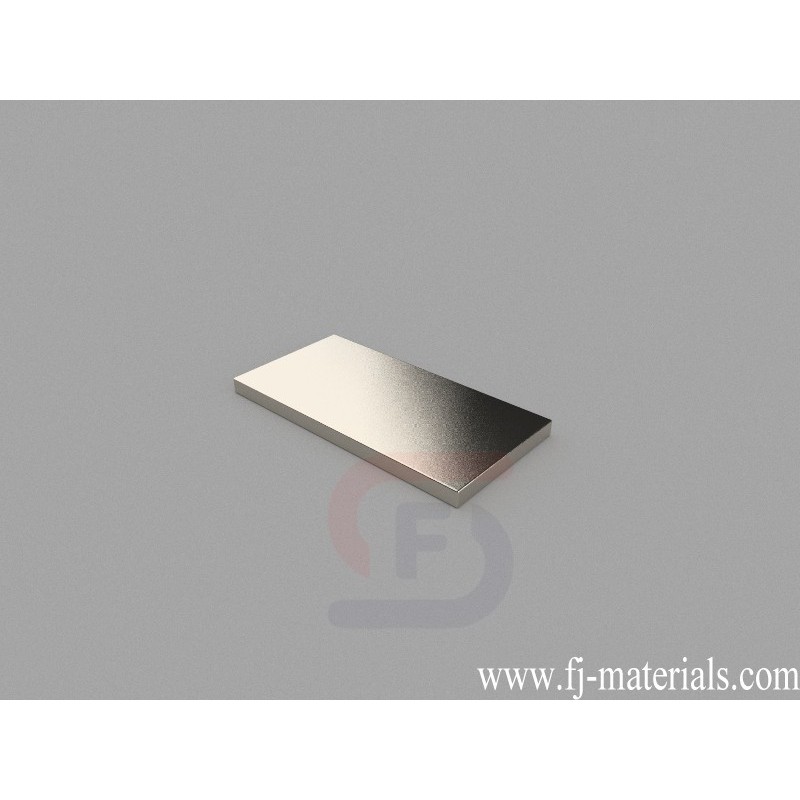

B50x25x3mm Neodymium Magnet, 50 x 25 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x25x3mm, Thru Thickness magnetized. Pull force is approximately 16.61 lbs (7.55kg).
B50x25x3mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x25x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 16.61 lbs (7.55kg). Magnetization direction: Through Thickness
B50x25x3mm Neodymium Magnet, 50 x 25 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x25x3mm, Thru Thickness magnetized. Pull force is approximately 16.61 lbs (7.55kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B50x25x3mm
Data sheet
- Item Number
- B50x25x3mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50x25x3mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 28.125g
- Pull Force
- 16.61 lbs (7.55kg)
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
B50x25x3mm Neodymium Magnet, 50 x 25 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x25x3mm, Thru Thickness magnetized. Pull force is approximately 16.61 lbs (7.55kg).
