50x30x2mm Block Magnets | B50x30x2mm

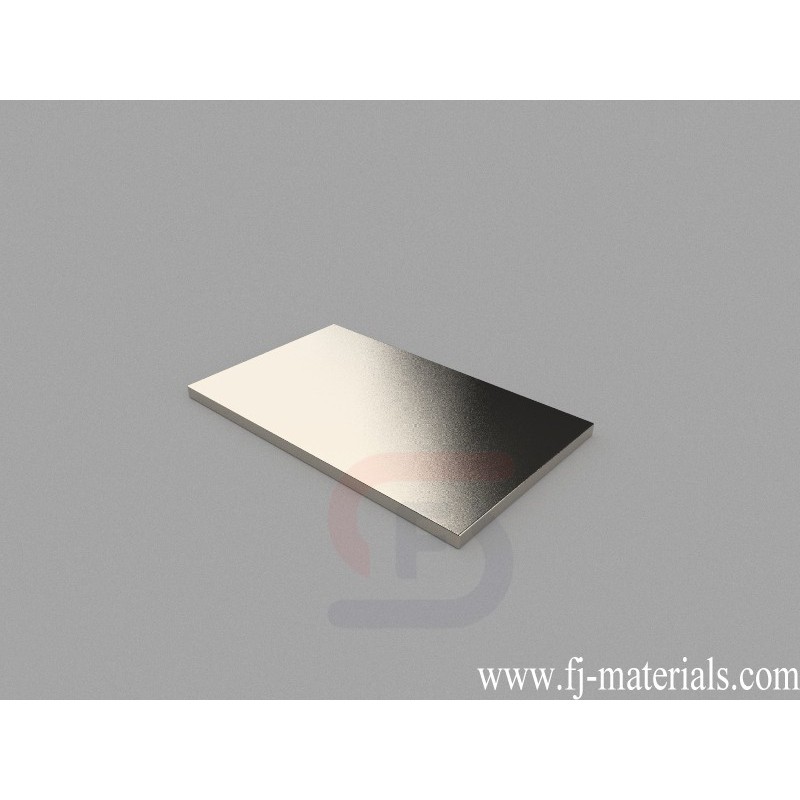

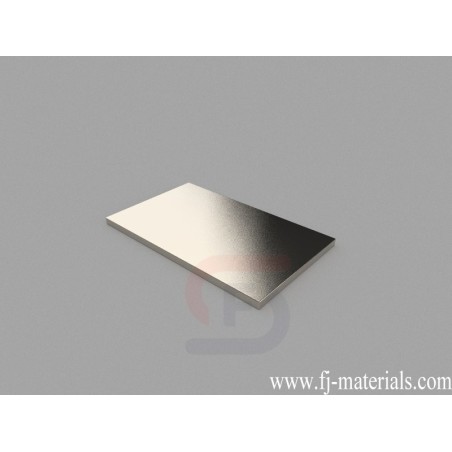

B50x30x2mm Neodymium Magnet, 50 x 30 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x30x2mm, Thru Thickness magnetized. Pull force is approximately 12.13 lbs (5.52kg).

B50x30x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x30x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 12.13 lbs (5.52kg). Magnetization direction: Through Thickness

B50x30x2mm Neodymium Magnet, 50 x 30 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x30x2mm, Thru Thickness magnetized. Pull force is approximately 12.13 lbs (5.52kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B50x30x2mm

Data sheet

Item Number
B50x30x2mm
Material
NdFeB
Grade
N42
Size
50x30x2mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
22.500g
Pull Force
12.13 lbs (5.52kg)
Thickness
A. 0.00-3.18mm
Length
G. 25.4-50.8mm
Width
G. 25.4-50.8mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
