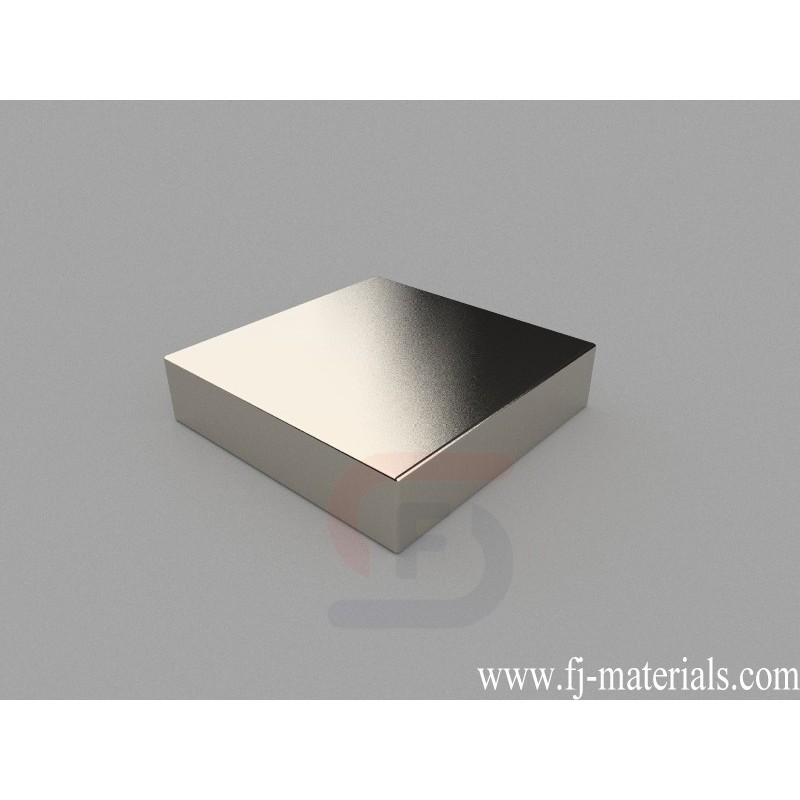

50x50x12mm Block Magnets | B50x50x12mm
B50x50x12mm Neodymium Magnet, 50 x 50 x 12mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x50x12mm, Thru Thickness magnetized. Pull force is approximately 93.99 lbs (42.72kg).
B50x50x12mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 50x50x12mm, Ni-Cu-Ni (Nickel) coating. Pull force: 93.99 lbs (42.72kg). Magnetization direction: Through Thickness
B50x50x12mm Neodymium Magnet, 50 x 50 x 12mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x50x12mm, Thru Thickness magnetized. Pull force is approximately 93.99 lbs (42.72kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B50x50x12mm
Data sheet
- Item Number
- B50x50x12mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50x50x12mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 225.000g
- Pull Force
- 93.99 lbs (42.72kg)
- Thickness
- D. 9.53-12.7mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B50x50x12mm Neodymium Magnet, 50 x 50 x 12mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50x50x12mm, Thru Thickness magnetized. Pull force is approximately 93.99 lbs (42.72kg).
