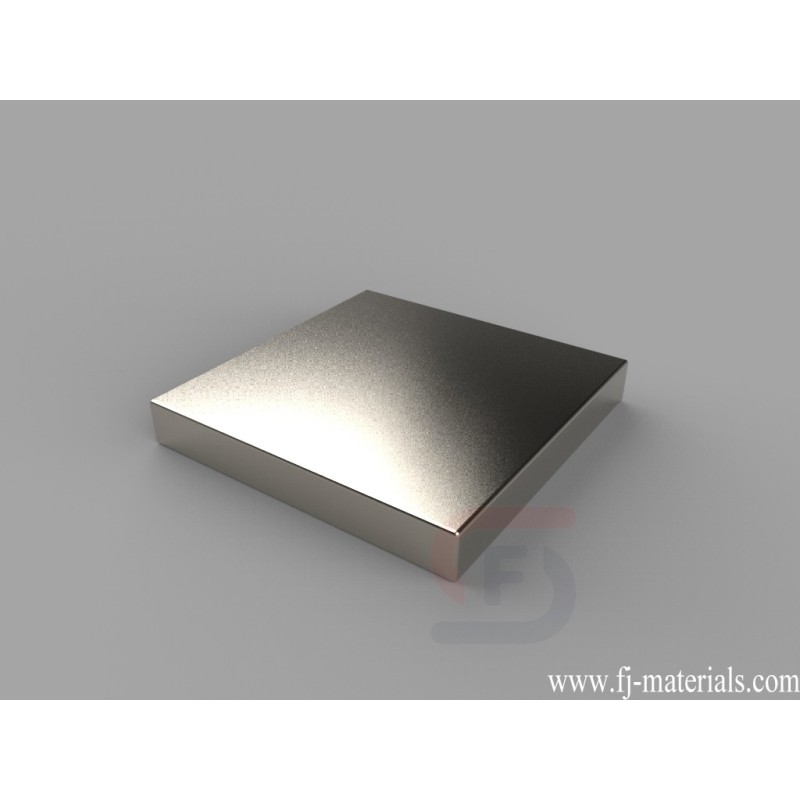

7/8 x 7/8 x 1/8 inch thick Block Magnets | BEE2
BEE2 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.47 lbs.
Yiwu Fenjiao E-commerce Firm supply BEE2 Neodymium Block Magnets with high quality at competitive price.
BEE2 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.47 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BEE2
Data sheet
- Item Number
- BEE2
- Material
- NdFeB
- Grade
- N42
- Size
- 7/8" x 7/8" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.415 oz. (11.8 g)
- Pull Force
- 12.47 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BEE2 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.47 lbs.
