55x10x8mm Block Magnets | B55x10x8mm

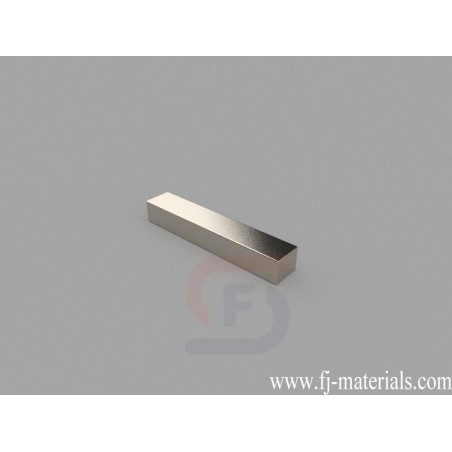

B55x10x8mm Neodymium Magnet, 55 x 10 x 8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 55x10x8mm, Thru Thickness magnetized. Pull force is approximately 29.39 lbs (13.36kg).
B55x10x8mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 55x10x8mm, Ni-Cu-Ni (Nickel) coating. Pull force: 29.39 lbs (13.36kg). Magnetization direction: Through Thickness
B55x10x8mm Neodymium Magnet, 55 x 10 x 8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 55x10x8mm, Thru Thickness magnetized. Pull force is approximately 29.39 lbs (13.36kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B55x10x8mm
Data sheet
- Item Number
- B55x10x8mm
- Material
- NdFeB
- Grade
- N42
- Size
- 55x10x8mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 33.000g
- Pull Force
- 29.39 lbs (13.36kg)
- Thickness
- C. 6.35-9.53mm
- Length
- H. 50.8-254mm
- Width
- D. 9.53-12.7mm
B55x10x8mm Neodymium Magnet, 55 x 10 x 8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 55x10x8mm, Thru Thickness magnetized. Pull force is approximately 29.39 lbs (13.36kg).
