5x5x5mm Block Magnets | B5x5x5mm

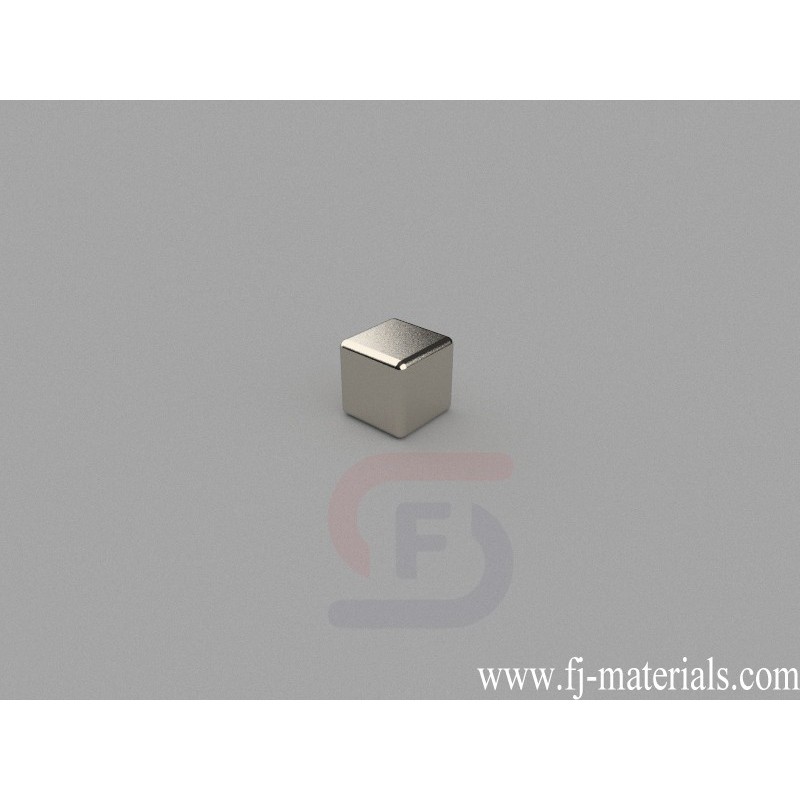

B5x5x5mm Neodymium Magnet, 5 x 5 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5x5x5mm, Thru Thickness magnetized. Pull force is approximately 3.92 lbs (1.78kg).
B5x5x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 5x5x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 3.92 lbs (1.78kg). Magnetization direction: Through Thickness
B5x5x5mm Neodymium Magnet, 5 x 5 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5x5x5mm, Thru Thickness magnetized. Pull force is approximately 3.92 lbs (1.78kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B5x5x5mm
Data sheet
- Item Number
- B5x5x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 5x5x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.938g
- Pull Force
- 3.92 lbs (1.78kg)
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B5x5x5mm Neodymium Magnet, 5 x 5 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5x5x5mm, Thru Thickness magnetized. Pull force is approximately 3.92 lbs (1.78kg).
