60x10x3mm Block Magnets | B60x10x3mm

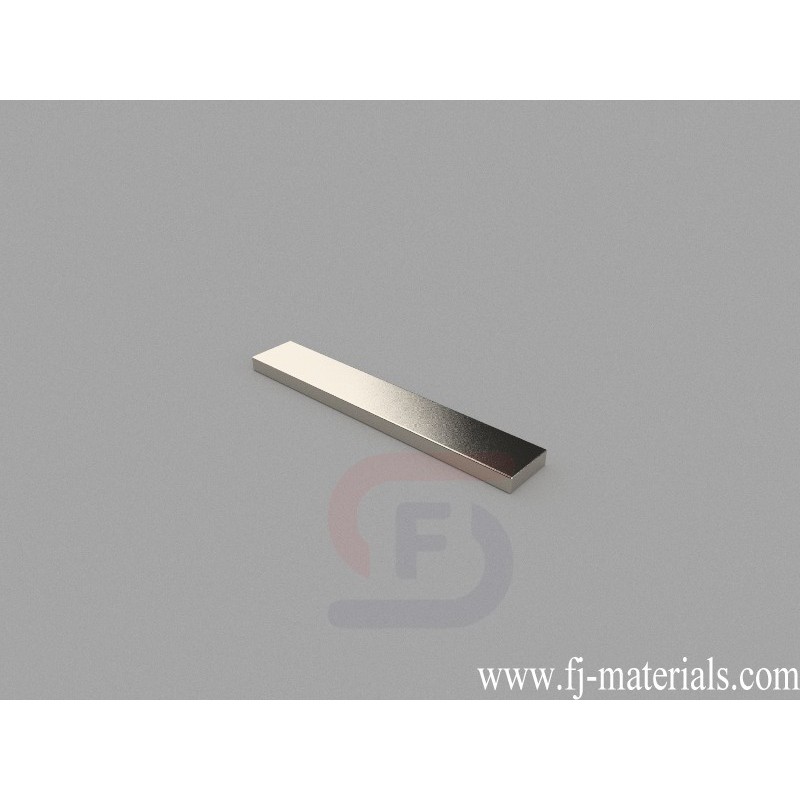

B60x10x3mm Neodymium Magnet, 60 x 10 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x10x3mm, Thru Thickness magnetized. Pull force is approximately 11.51 lbs (5.23kg).
B60x10x3mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 60x10x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 11.51 lbs (5.23kg). Magnetization direction: Through Thickness
B60x10x3mm Neodymium Magnet, 60 x 10 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x10x3mm, Thru Thickness magnetized. Pull force is approximately 11.51 lbs (5.23kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B60x10x3mm
Data sheet
- Item Number
- B60x10x3mm
- Material
- NdFeB
- Grade
- N42
- Size
- 60x10x3mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 13.500g
- Pull Force
- 11.51 lbs (5.23kg)
- Thickness
- A. 0.00-3.18mm
- Length
- H. 50.8-254mm
- Width
- D. 9.53-12.7mm
B60x10x3mm Neodymium Magnet, 60 x 10 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x10x3mm, Thru Thickness magnetized. Pull force is approximately 11.51 lbs (5.23kg).
