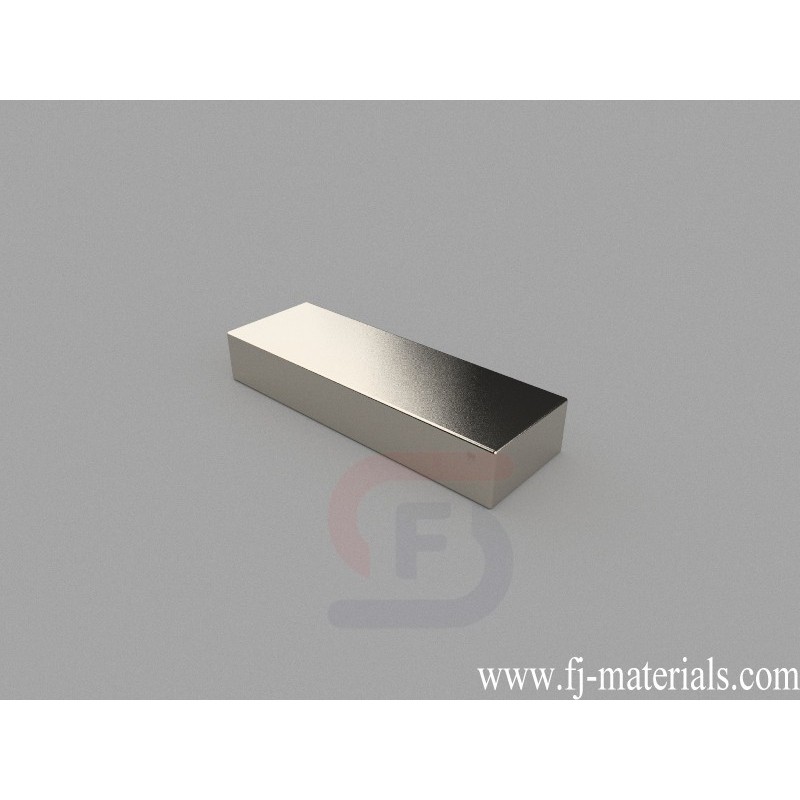

60x20x10mm Block Magnets | B60x20x10mm

B60x20x10mm Neodymium Magnet, 60 x 20 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x20x10mm, Thru Thickness magnetized. Pull force is approximately 54.26 lbs (24.66kg).

B60x20x10mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 60x20x10mm, Ni-Cu-Ni (Nickel) coating. Pull force: 54.26 lbs (24.66kg). Magnetization direction: Through Thickness

B60x20x10mm Neodymium Magnet, 60 x 20 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x20x10mm, Thru Thickness magnetized. Pull force is approximately 54.26 lbs (24.66kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B60x20x10mm

Data sheet

Item Number
B60x20x10mm
Material
NdFeB
Grade
N42
Size
60x20x10mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
90.000g
Pull Force
54.26 lbs (24.66kg)
Thickness
D. 9.53-12.7mm
Length
H. 50.8-254mm
Width
F. 19.05-25.4mm
