60x20x15mm Block Magnets | B60x20x15mm

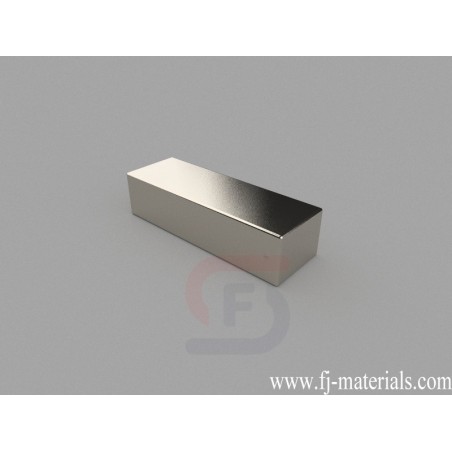

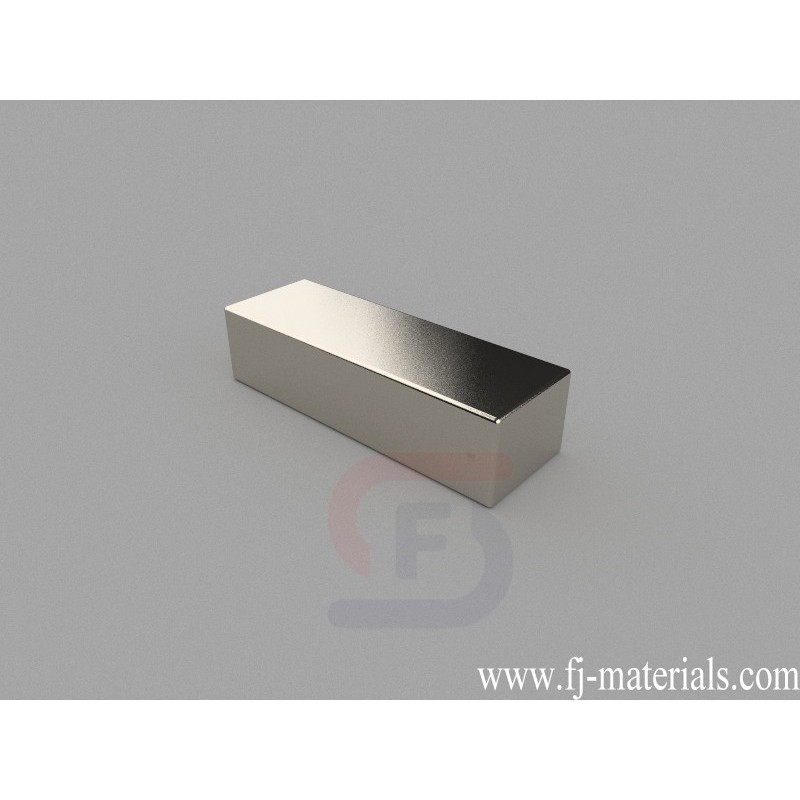

B60x20x15mm Neodymium Magnet, 60 x 20 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x20x15mm, Thru Thickness magnetized. Pull force is approximately 81.39 lbs (37.00kg).
B60x20x15mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 60x20x15mm, Ni-Cu-Ni (Nickel) coating. Pull force: 81.39 lbs (37.00kg). Magnetization direction: Through Thickness
B60x20x15mm Neodymium Magnet, 60 x 20 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x20x15mm, Thru Thickness magnetized. Pull force is approximately 81.39 lbs (37.00kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B60x20x15mm
Data sheet
- Item Number
- B60x20x15mm
- Material
- NdFeB
- Grade
- N42
- Size
- 60x20x15mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 135.000g
- Pull Force
- 81.39 lbs (37.00kg)
- Thickness
- E. 12.7-19.05mm
- Length
- H. 50.8-254mm
- Width
- F. 19.05-25.4mm
B60x20x15mm Neodymium Magnet, 60 x 20 x 15mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60x20x15mm, Thru Thickness magnetized. Pull force is approximately 81.39 lbs (37.00kg).
