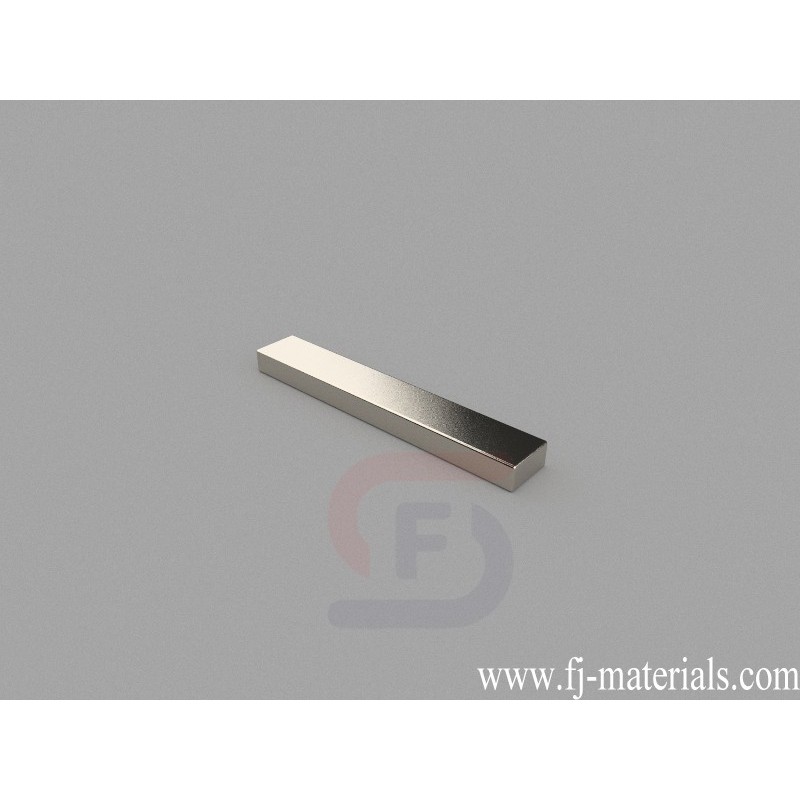

75x12x6mm Block Magnets | B75x12x6mm
B75x12x6mm Neodymium Magnet, 75 x 12 x 6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x12x6mm, Thru Thickness magnetized. Pull force is approximately 28.20 lbs (12.82kg).
B75x12x6mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 75x12x6mm, Ni-Cu-Ni (Nickel) coating. Pull force: 28.20 lbs (12.82kg). Magnetization direction: Through Thickness
B75x12x6mm Neodymium Magnet, 75 x 12 x 6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x12x6mm, Thru Thickness magnetized. Pull force is approximately 28.20 lbs (12.82kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B75x12x6mm
Data sheet
- Item Number
- B75x12x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 75x12x6mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 40.500g
- Pull Force
- 28.20 lbs (12.82kg)
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- D. 9.53-12.7mm
B75x12x6mm Neodymium Magnet, 75 x 12 x 6mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x12x6mm, Thru Thickness magnetized. Pull force is approximately 28.20 lbs (12.82kg).
