75x20x5mm Block Magnets | B75x20x5mm

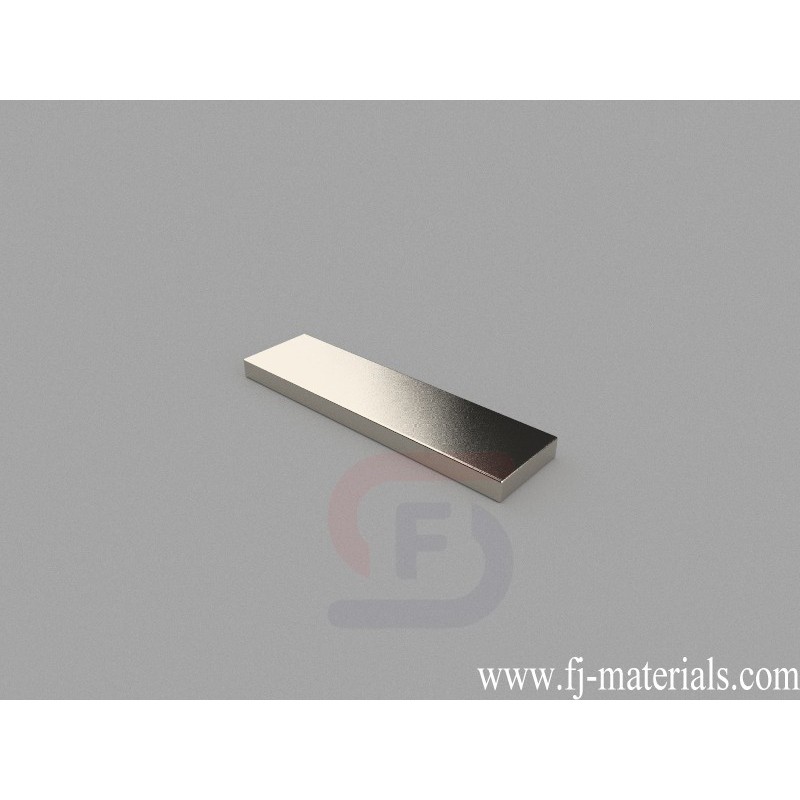

B75x20x5mm Neodymium Magnet, 75 x 20 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x20x5mm, Thru Thickness magnetized. Pull force is approximately 30.33 lbs (13.79kg).
B75x20x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 75x20x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 30.33 lbs (13.79kg). Magnetization direction: Through Thickness
B75x20x5mm Neodymium Magnet, 75 x 20 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x20x5mm, Thru Thickness magnetized. Pull force is approximately 30.33 lbs (13.79kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B75x20x5mm
Data sheet
- Item Number
- B75x20x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 75x20x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 56.250g
- Pull Force
- 30.33 lbs (13.79kg)
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- F. 19.05-25.4mm
B75x20x5mm Neodymium Magnet, 75 x 20 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 75x20x5mm, Thru Thickness magnetized. Pull force is approximately 30.33 lbs (13.79kg).
