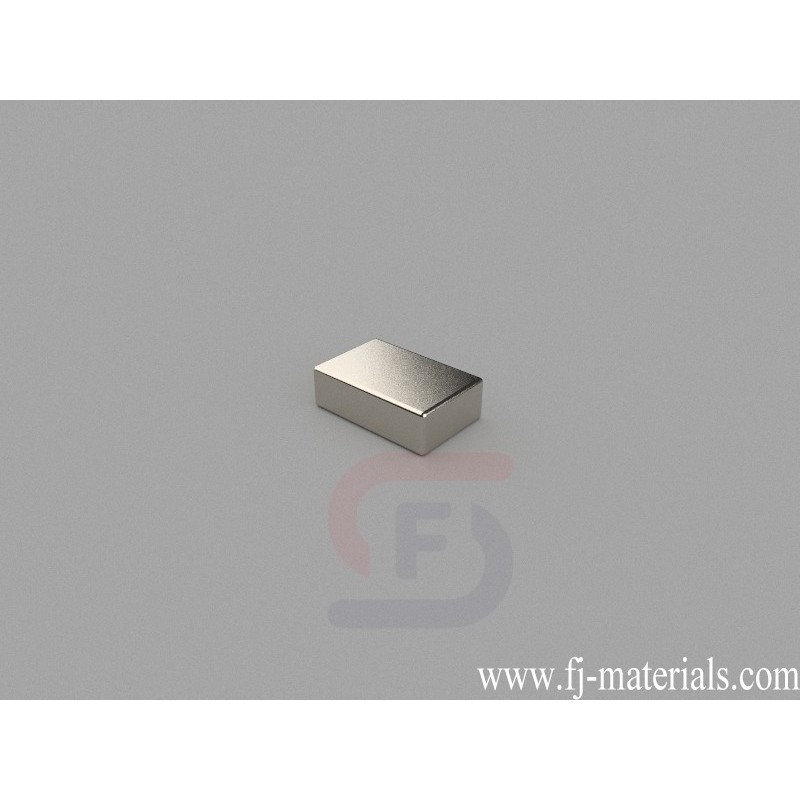

8.8x5.7x2.8mm Block Magnets | B8.8x5.7x2.8mm
B8.8x5.7x2.8mm Neodymium Magnet, 8.8 x 5.7 x 2.8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8.8x5.7x2.8mm, Thru Thickness magnetized. Pull force is approximately 3.11 lbs (1.41kg).
B8.8x5.7x2.8mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 8.8x5.7x2.8mm, Ni-Cu-Ni (Nickel) coating. Pull force: 3.11 lbs (1.41kg). Magnetization direction: Through Thickness
B8.8x5.7x2.8mm Neodymium Magnet, 8.8 x 5.7 x 2.8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8.8x5.7x2.8mm, Thru Thickness magnetized. Pull force is approximately 3.11 lbs (1.41kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B8.8x5.7x2.8mm
Data sheet
- Item Number
- B8.8x5.7x2.8mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8.8x5.7x2.8mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.053g
- Pull Force
- 3.11 lbs (1.41kg)
- Thickness
- A. 0.00-3.18mm
- Length
- C. 6.35-9.53mm
- Width
- B. 3.18-6.35mm
B8.8x5.7x2.8mm Neodymium Magnet, 8.8 x 5.7 x 2.8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8.8x5.7x2.8mm, Thru Thickness magnetized. Pull force is approximately 3.11 lbs (1.41kg).
