8x4x2mm Block Magnets | B8x4x2mm

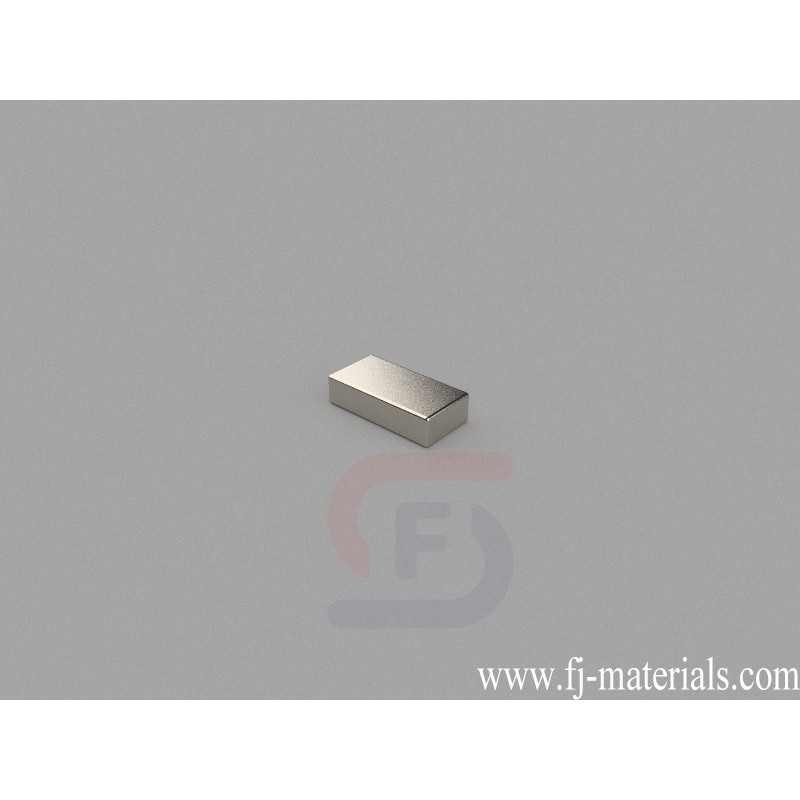

B8x4x2mm Neodymium Magnet, 8 x 4 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8x4x2mm, Thru Thickness magnetized. Pull force is approximately 1.77 lbs (0.81kg).
B8x4x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 8x4x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 1.77 lbs (0.81kg). Magnetization direction: Through Thickness
B8x4x2mm Neodymium Magnet, 8 x 4 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8x4x2mm, Thru Thickness magnetized. Pull force is approximately 1.77 lbs (0.81kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B8x4x2mm
Data sheet
- Item Number
- B8x4x2mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8x4x2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.480g
- Pull Force
- 1.77 lbs (0.81kg)
- Thickness
- A. 0.00-3.18mm
- Length
- C. 6.35-9.53mm
- Width
- B. 3.18-6.35mm
B8x4x2mm Neodymium Magnet, 8 x 4 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8x4x2mm, Thru Thickness magnetized. Pull force is approximately 1.77 lbs (0.81kg).
