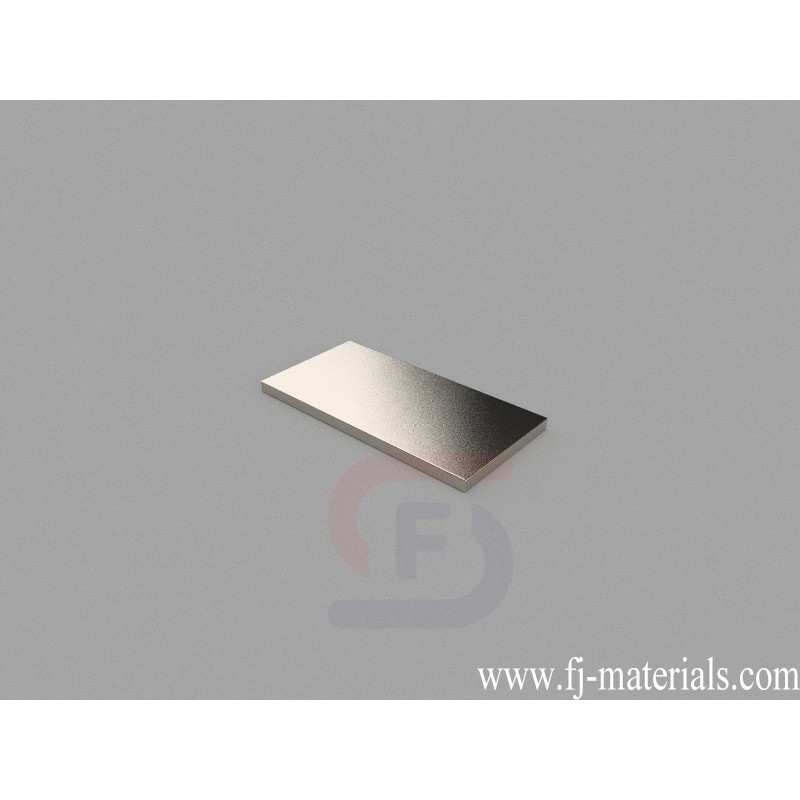

20x10x1mm with adhesive backing Block Magnets | B-W10H1L20-N35AD
B-W10H1L20-N35AD Neodymium Magnet, 20x10x1mm with adhesive backing Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 20x10x1mm with adhesive backing, Thru Thickness magnetized. Pull force is approximately 1.86 lbs (0.85kg).
B-W10H1L20-N35AD Neodymium Block Magnets is made from high perfermance N35 NdFeB. The dimesion is 20x10x1mm with adhesive backing, Ni-Cu-Ni (Nickel) coating. Pull force: 1.86 lbs (0.85kg). Magnetization direction: Through Thickness
B-W10H1L20-N35AD Neodymium Magnet, 20x10x1mm with adhesive backing Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 20x10x1mm with adhesive backing, Thru Thickness magnetized. Pull force is approximately 1.86 lbs (0.85kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W10H1L20-N35AD
Data sheet
- Item Number
- B-W10H1L20-N35AD
- Material
- NdFeB
- Grade
- N35
- Size
- 20x10x1mm with adhesive backing
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.500g
- Pull Force
- 1.86 lbs (0.85kg)
- Thickness
- A. 0.00-3.18mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
B-W10H1L20-N35AD Neodymium Magnet, 20x10x1mm with adhesive backing Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 20x10x1mm with adhesive backing, Thru Thickness magnetized. Pull force is approximately 1.86 lbs (0.85kg).
