20x10x3mm Block Magnets | B-W10H3L20-N48

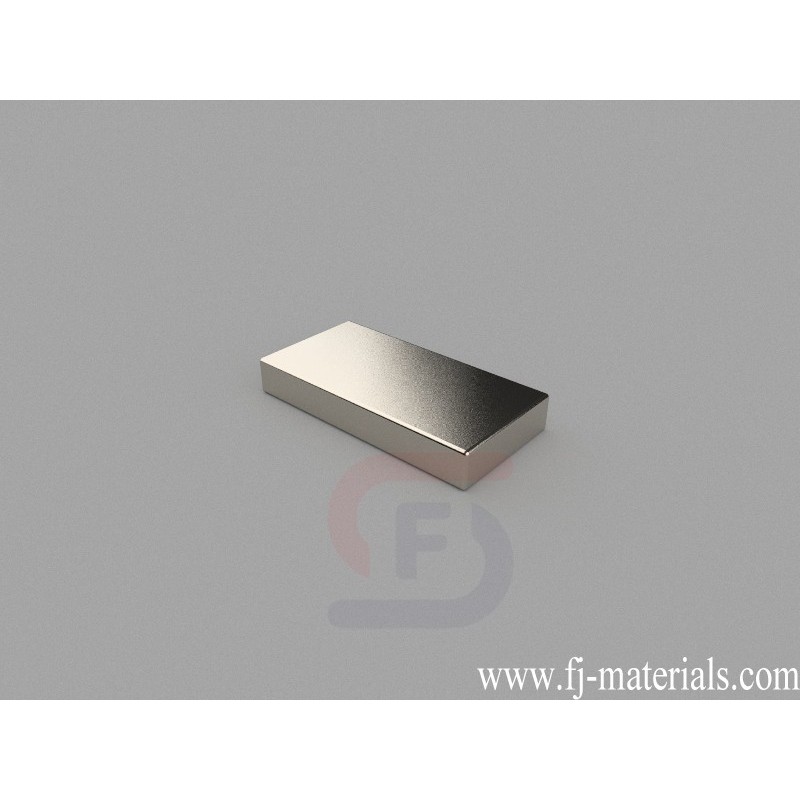

B-W10H3L20-N48 Neodymium Magnet, 20x10x3mm Block Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 20x10x3mm, Thru Thickness magnetized. Pull force is approximately 7.48 lbs (3.40kg).
B-W10H3L20-N48 Neodymium Block Magnets is made from high perfermance N48 NdFeB. The dimesion is 20x10x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 7.48 lbs (3.40kg). Magnetization direction: Through Thickness
B-W10H3L20-N48 Neodymium Magnet, 20x10x3mm Block Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 20x10x3mm, Thru Thickness magnetized. Pull force is approximately 7.48 lbs (3.40kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W10H3L20-N48
Data sheet
- Item Number
- B-W10H3L20-N48
- Material
- NdFeB
- Grade
- N48
- Size
- 20x10x3mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.500g
- Pull Force
- 7.48 lbs (3.40kg)
- Thickness
- A. 0.00-3.18mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
B-W10H3L20-N48 Neodymium Magnet, 20x10x3mm Block Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 20x10x3mm, Thru Thickness magnetized. Pull force is approximately 7.48 lbs (3.40kg).
