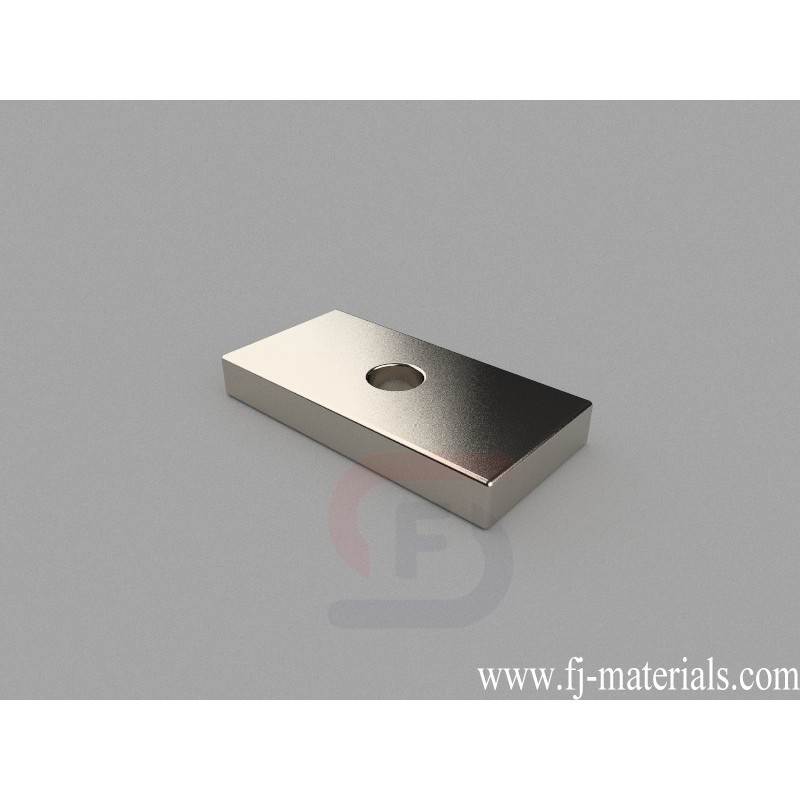

25x12.5x3.5mm with D4mm hole Block Magnets | B-W12.5H3.5L25D4-N42
B-W12.5H3.5L25D4-N42 Neodymium Magnet, 25x12.5x3.5mm with D4mm hole Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x12.5x3.5mm with D4mm hole, Thru Thickness magnetized. Pull force is approximately test value.
B-W12.5H3.5L25D4-N42 Neodymium Block Magnets is made from high perfermance N42 NdFeB. The dimesion is 25x12.5x3.5mm with D4mm hole, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
B-W12.5H3.5L25D4-N42 Neodymium Magnet, 25x12.5x3.5mm with D4mm hole Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x12.5x3.5mm with D4mm hole, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W12.5H3.5L25D4-N42
Data sheet
- Item Number
- B-W12.5H3.5L25D4-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 25x12.5x3.5mm with D4mm hole
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 8.203g
- Pull Force
- test value
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
B-W12.5H3.5L25D4-N42 Neodymium Magnet, 25x12.5x3.5mm with D4mm hole Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x12.5x3.5mm with D4mm hole, Thru Thickness magnetized. Pull force is approximately test value.
