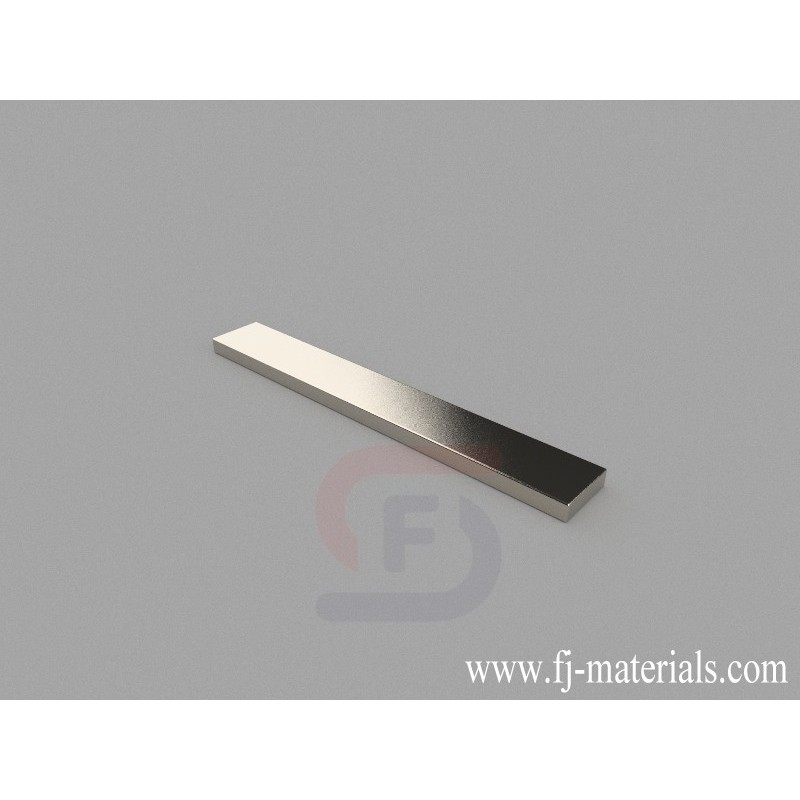

100x14x4mm Block Magnets | B-W14H4L100-N45SHE
B-W14H4L100-N45SHE Neodymium Magnet, 100x14x4mm Block Magnet is made of Grade N45SH NdFeB, Black Epoxy. The dimension is 100x14x4mm, Thru Thickness magnetized. Pull force is approximately 25.25 lbs (11.48kg).
B-W14H4L100-N45SHE Neodymium Block Magnets is made from high perfermance N45SH NdFeB. The dimesion is 100x14x4mm, Epoxy coating. Pull force: 25.25 lbs (11.48kg). Magnetization direction: Through Thickness
B-W14H4L100-N45SHE Neodymium Magnet, 100x14x4mm Block Magnet is made of Grade N45SH NdFeB, Black Epoxy. The dimension is 100x14x4mm, Thru Thickness magnetized. Pull force is approximately 25.25 lbs (11.48kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W14H4L100-N45SHE
Data sheet
- Item Number
- B-W14H4L100-N45SHE
- Material
- NdFeB
- Grade
- N45SH
- Size
- 100x14x4mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Epoxy
- Magnetization Direction
- Thru Thickness
- Weight
- 42.000g
- Pull Force
- 25.25 lbs (11.48kg)
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- E. 12.7-19.05mm
B-W14H4L100-N45SHE Neodymium Magnet, 100x14x4mm Block Magnet is made of Grade N45SH NdFeB, Black Epoxy. The dimension is 100x14x4mm, Thru Thickness magnetized. Pull force is approximately 25.25 lbs (11.48kg).
