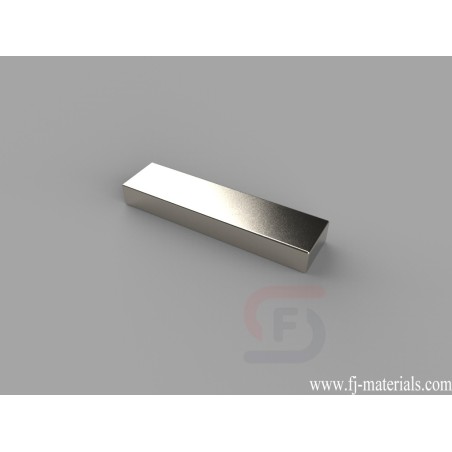

1 x 1/4 x 1/8 inch thick Block Magnets | BX042
BX042 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.34 lbs.
Yiwu Fenjiao E-commerce Firm supply BX042 Neodymium Block Magnets with high quality at competitive price.
BX042 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.34 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX042
Data sheet
- Item Number
- BX042
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1/4" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.136 oz. (3.84 g)
- Pull Force
- 7.34 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- F. 19.05-25.4mm
- Width
- B. 3.18-6.35mm
BX042 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.34 lbs.
