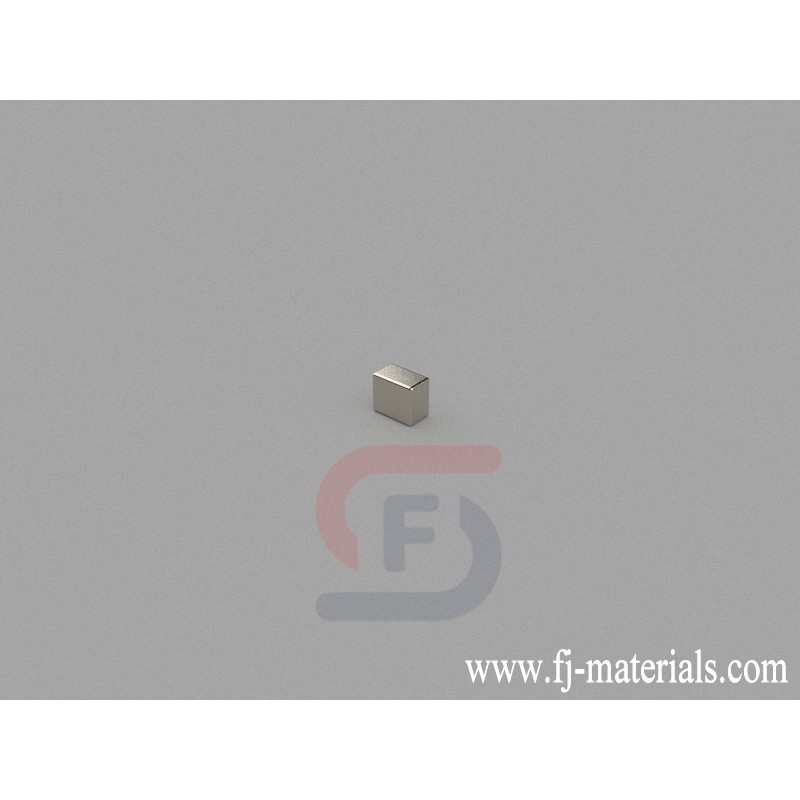

3.7x2.2x3.2mm Block Magnets | B-W2.2H3.2L3.7-N52Au
B-W2.2H3.2L3.7-N52Au Neodymium Magnet, 3.7x2.2x3.2mm Block Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 3.7x2.2x3.2mm, Thru Thickness magnetized. Pull force is approximately 1.70 lbs (0.77kg).
B-W2.2H3.2L3.7-N52Au Neodymium Block Magnets is made from high perfermance N52 NdFeB. The dimesion is 3.7x2.2x3.2mm, Gold (Au) coating. Pull force: 1.70 lbs (0.77kg). Magnetization direction: Through Thickness
B-W2.2H3.2L3.7-N52Au Neodymium Magnet, 3.7x2.2x3.2mm Block Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 3.7x2.2x3.2mm, Thru Thickness magnetized. Pull force is approximately 1.70 lbs (0.77kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W2.2H3.2L3.7-N52Au
Data sheet
- Item Number
- B-W2.2H3.2L3.7-N52Au
- Material
- NdFeB
- Grade
- N52
- Size
- 3.7x2.2x3.2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Gold Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.195g
- Pull Force
- 1.70 lbs (0.77kg)
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- A. 0.00-3.18mm
B-W2.2H3.2L3.7-N52Au Neodymium Magnet, 3.7x2.2x3.2mm Block Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 3.7x2.2x3.2mm, Thru Thickness magnetized. Pull force is approximately 1.70 lbs (0.77kg).
