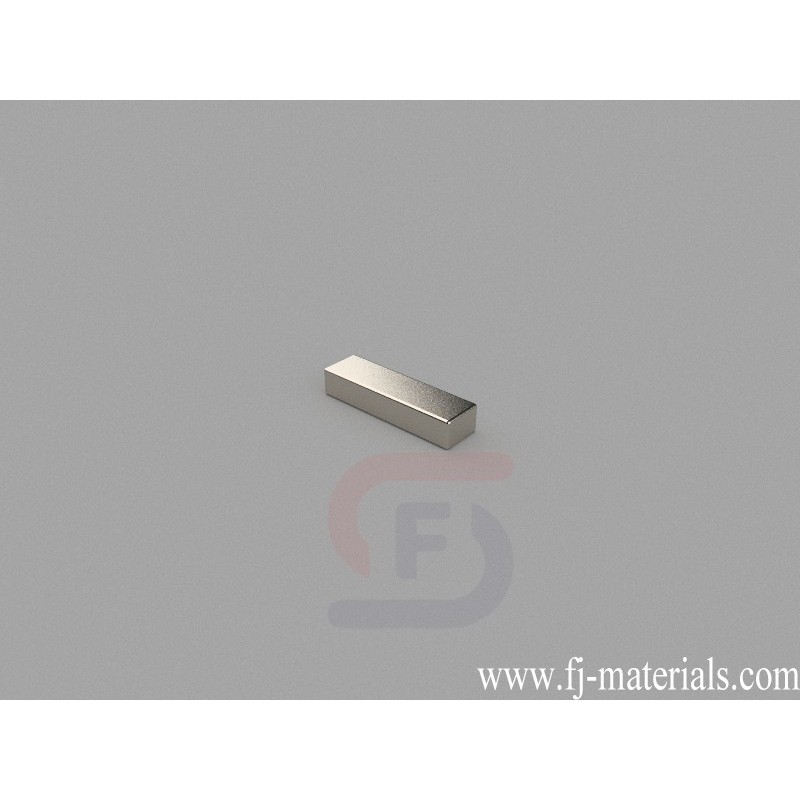

10x2.8x1.9mm Block Magnets | B-W2.8H1.9L10-N50BNi
B-W2.8H1.9L10-N50BNi Neodymium Magnet, 10x2.8x1.9mm Block Magnet is made of Grade N50 NdFeB, Black Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.82 lbs (0.83kg).
B-W2.8H1.9L10-N50BNi Neodymium Block Magnets is made from high perfermance N50 NdFeB. The dimesion is 10x2.8x1.9mm, Black Nickel (BNi) coating. Pull force: 1.82 lbs (0.83kg). Magnetization direction: Through Thickness
B-W2.8H1.9L10-N50BNi Neodymium Magnet, 10x2.8x1.9mm Block Magnet is made of Grade N50 NdFeB, Black Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.82 lbs (0.83kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W2.8H1.9L10-N50BNi
Data sheet
- Item Number
- B-W2.8H1.9L10-N50BNi
- Material
- NdFeB
- Grade
- N50
- Size
- 10x2.8x1.9mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.399g
- Pull Force
- 1.82 lbs (0.83kg)
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- A. 0.00-3.18mm
B-W2.8H1.9L10-N50BNi Neodymium Magnet, 10x2.8x1.9mm Block Magnet is made of Grade N50 NdFeB, Black Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.82 lbs (0.83kg).
