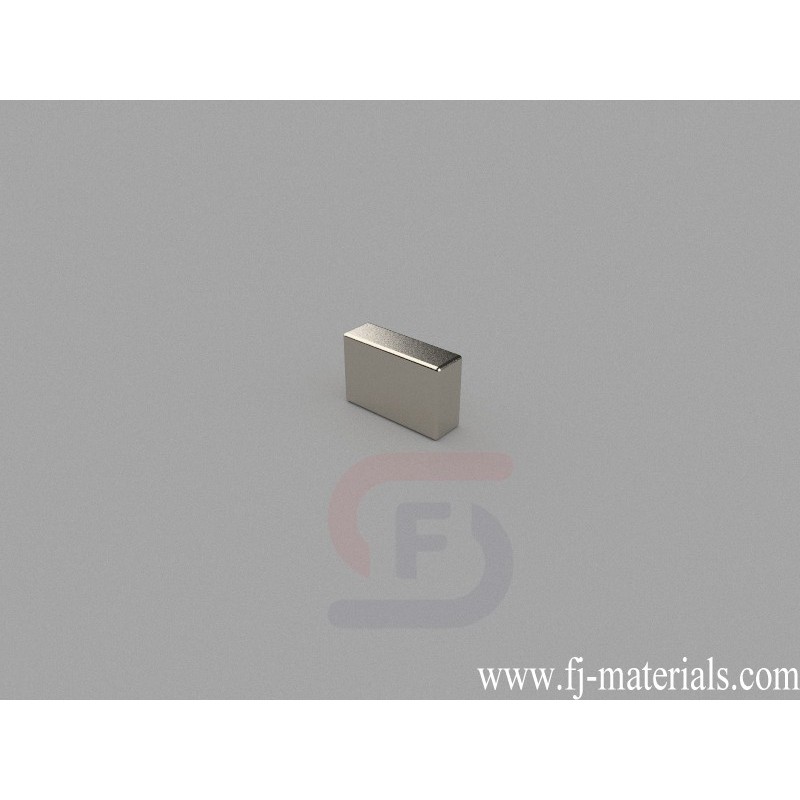

8.8x2.8x5.7mm Block Magnets | B-W2.8H5.7L8.8-N50
B-W2.8H5.7L8.8-N50 Neodymium Magnet, 8.8x2.8x5.7mm Block Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 8.8x2.8x5.7mm, Thru Thickness magnetized. Pull force is approximately 5.13 lbs (2.33kg).
B-W2.8H5.7L8.8-N50 Neodymium Block Magnets is made from high perfermance N50 NdFeB. The dimesion is 8.8x2.8x5.7mm, Ni-Cu-Ni (Nickel) coating. Pull force: 5.13 lbs (2.33kg). Magnetization direction: Through Thickness
B-W2.8H5.7L8.8-N50 Neodymium Magnet, 8.8x2.8x5.7mm Block Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 8.8x2.8x5.7mm, Thru Thickness magnetized. Pull force is approximately 5.13 lbs (2.33kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W2.8H5.7L8.8-N50
Data sheet
- Item Number
- B-W2.8H5.7L8.8-N50
- Material
- NdFeB
- Grade
- N50
- Size
- 8.8x2.8x5.7mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.053g
- Pull Force
- 5.13 lbs (2.33kg)
- Thickness
- B. 3.18-6.35mm
- Length
- C. 6.35-9.53mm
- Width
- A. 0.00-3.18mm
B-W2.8H5.7L8.8-N50 Neodymium Magnet, 8.8x2.8x5.7mm Block Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 8.8x2.8x5.7mm, Thru Thickness magnetized. Pull force is approximately 5.13 lbs (2.33kg).
