20x20x20mm Block Magnets | B-W20H20L20-N45Zn

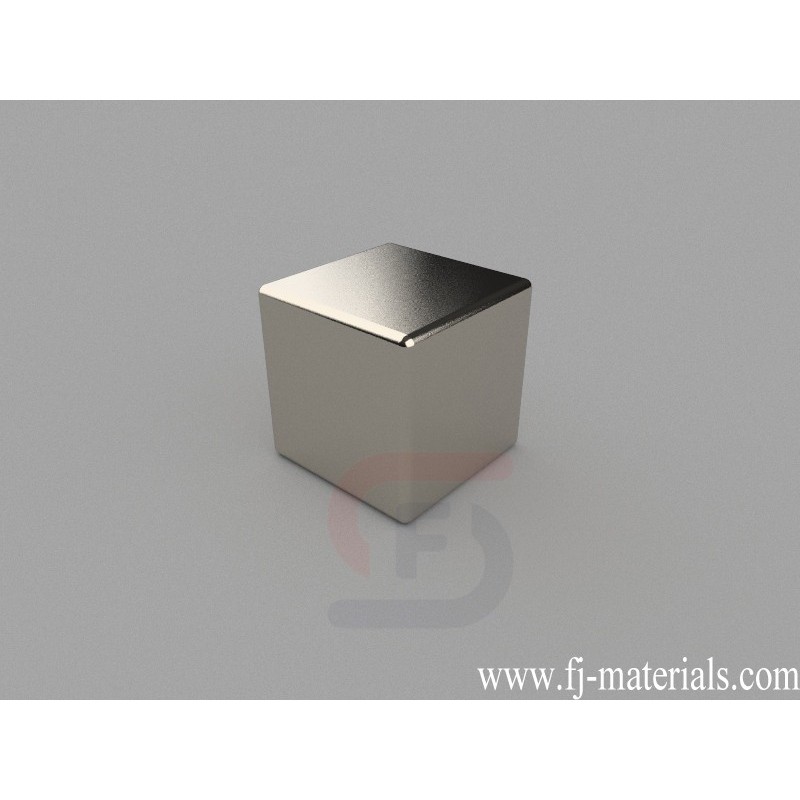

B-W20H20L20-N45Zn Neodymium Magnet, 20x20x20mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 20x20x20mm, Thru Thickness magnetized. Pull force is approximately 66.51 lbs (30.23kg).
B-W20H20L20-N45Zn Neodymium Block Magnets is made from high perfermance N45 NdFeB. The dimesion is 20x20x20mm, Ni-Cu-Ni (Nickel) coating. Pull force: 66.51 lbs (30.23kg). Magnetization direction: Through Thickness
B-W20H20L20-N45Zn Neodymium Magnet, 20x20x20mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 20x20x20mm, Thru Thickness magnetized. Pull force is approximately 66.51 lbs (30.23kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W20H20L20-N45Zn
Data sheet
- Item Number
- B-W20H20L20-N45Zn
- Material
- NdFeB
- Grade
- N45
- Size
- 20x20x20mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 60.000g
- Pull Force
- 66.51 lbs (30.23kg)
- Thickness
- F. 19.05-25.4mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
B-W20H20L20-N45Zn Neodymium Magnet, 20x20x20mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 20x20x20mm, Thru Thickness magnetized. Pull force is approximately 66.51 lbs (30.23kg).
