75x20x5mm with D10mm hole Block Magnets | B-W20H5L75ID10-N45

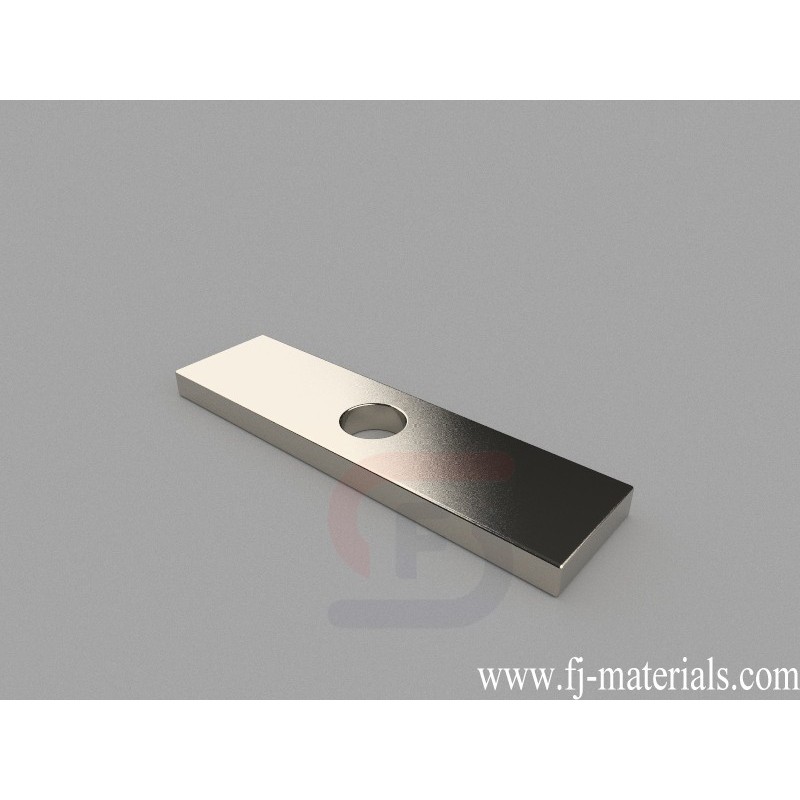

B-W20H5L75ID10-N45 Neodymium Magnet, 75x20x5mm with D10mm hole Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 75x20x5mm with D10mm hole, Thru Thickness magnetized. Pull force is approximately test value.
B-W20H5L75ID10-N45 Neodymium Block Magnets is made from high perfermance N45 NdFeB. The dimesion is 75x20x5mm with D10mm hole, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
B-W20H5L75ID10-N45 Neodymium Magnet, 75x20x5mm with D10mm hole Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 75x20x5mm with D10mm hole, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W20H5L75ID10-N45
Data sheet
- Item Number
- B-W20H5L75ID10-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 75x20x5mm with D10mm hole
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 56.250g
- Pull Force
- test value
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- F. 19.05-25.4mm
B-W20H5L75ID10-N45 Neodymium Magnet, 75x20x5mm with D10mm hole Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 75x20x5mm with D10mm hole, Thru Thickness magnetized. Pull force is approximately test value.
