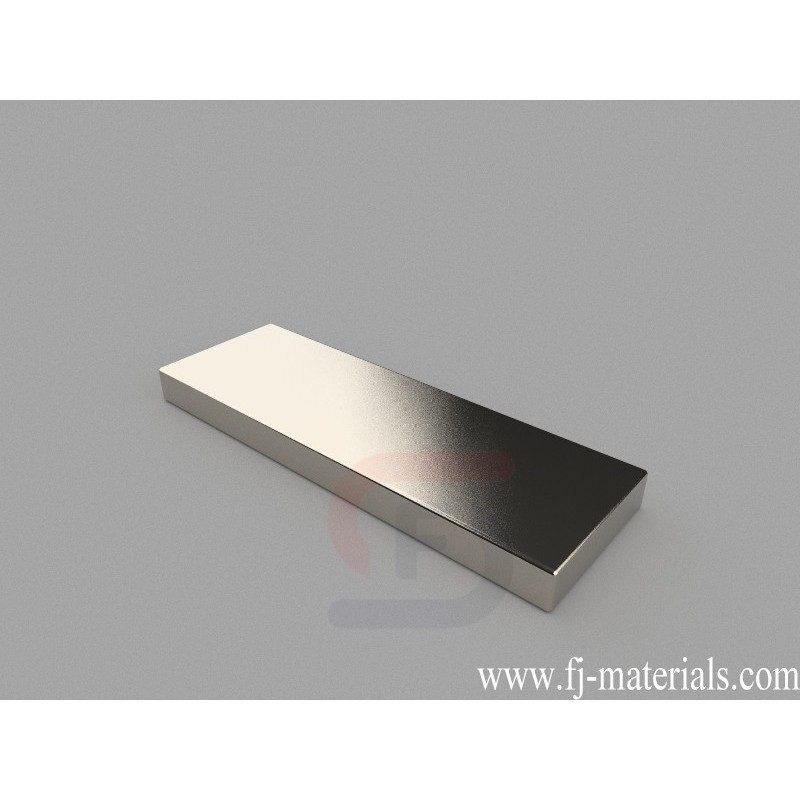

76.2x25.4x6.35mm Block Magnets | B-W25.4H6.35L76.2-N42
B-W25.4H6.35L76.2-N42 Neodymium Magnet, 76.2x25.4x6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 76.2x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 43.76 lbs (19.89kg).
B-W25.4H6.35L76.2-N42 Neodymium Block Magnets is made from high perfermance N42 NdFeB. The dimesion is 76.2x25.4x6.35mm, Ni-Cu-Ni (Nickel) coating. Pull force: 43.76 lbs (19.89kg). Magnetization direction: Through Thickness
B-W25.4H6.35L76.2-N42 Neodymium Magnet, 76.2x25.4x6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 76.2x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 43.76 lbs (19.89kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W25.4H6.35L76.2-N42
Data sheet
- Item Number
- B-W25.4H6.35L76.2-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 76.2x25.4x6.35mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 92.177g
- Pull Force
- 43.76 lbs (19.89kg)
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- F. 19.05-25.4mm
B-W25.4H6.35L76.2-N42 Neodymium Magnet, 76.2x25.4x6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 76.2x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 43.76 lbs (19.89kg).
