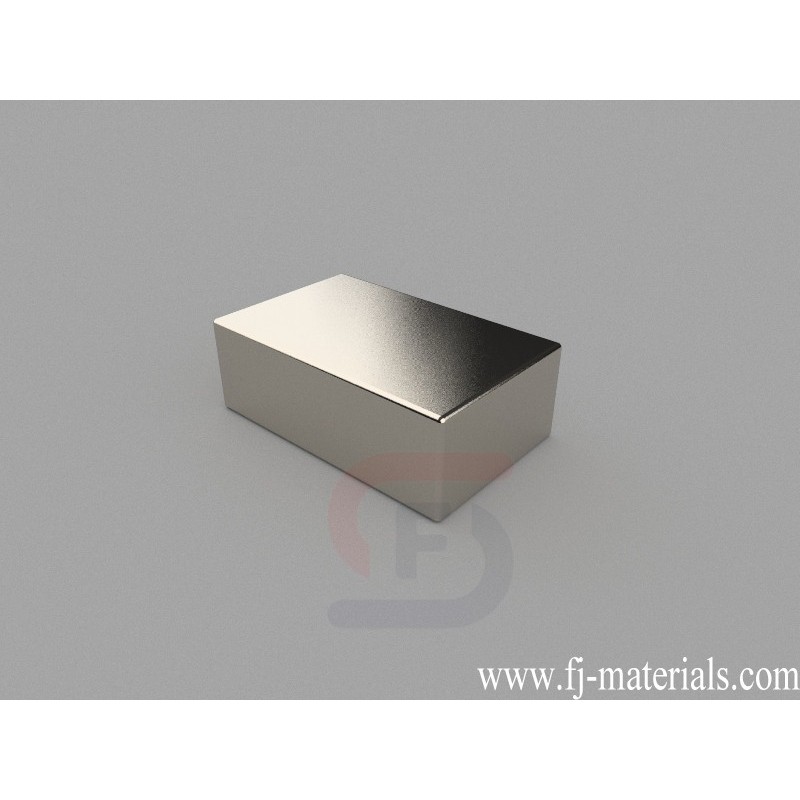

40x25x14mm Block Magnets | B-W25H14L40-N52
B-W25H14L40-N52 Neodymium Magnet, 40x25x14mm Block Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 40x25x14mm, Thru Thickness magnetized. Pull force is approximately 82.53 lbs (37.51kg).
B-W25H14L40-N52 Neodymium Block Magnets is made from high perfermance N52 NdFeB. The dimesion is 40x25x14mm, Ni-Cu-Ni (Nickel) coating. Pull force: 82.53 lbs (37.51kg). Magnetization direction: Through Thickness
B-W25H14L40-N52 Neodymium Magnet, 40x25x14mm Block Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 40x25x14mm, Thru Thickness magnetized. Pull force is approximately 82.53 lbs (37.51kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W25H14L40-N52
Data sheet
- Item Number
- B-W25H14L40-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 40x25x14mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 105.000g
- Pull Force
- 82.53 lbs (37.51kg)
- Thickness
- E. 12.7-19.05mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
B-W25H14L40-N52 Neodymium Magnet, 40x25x14mm Block Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 40x25x14mm, Thru Thickness magnetized. Pull force is approximately 82.53 lbs (37.51kg).
