4x2x1.34mm Block Magnets | B-W2H1.34L4-N52BNi

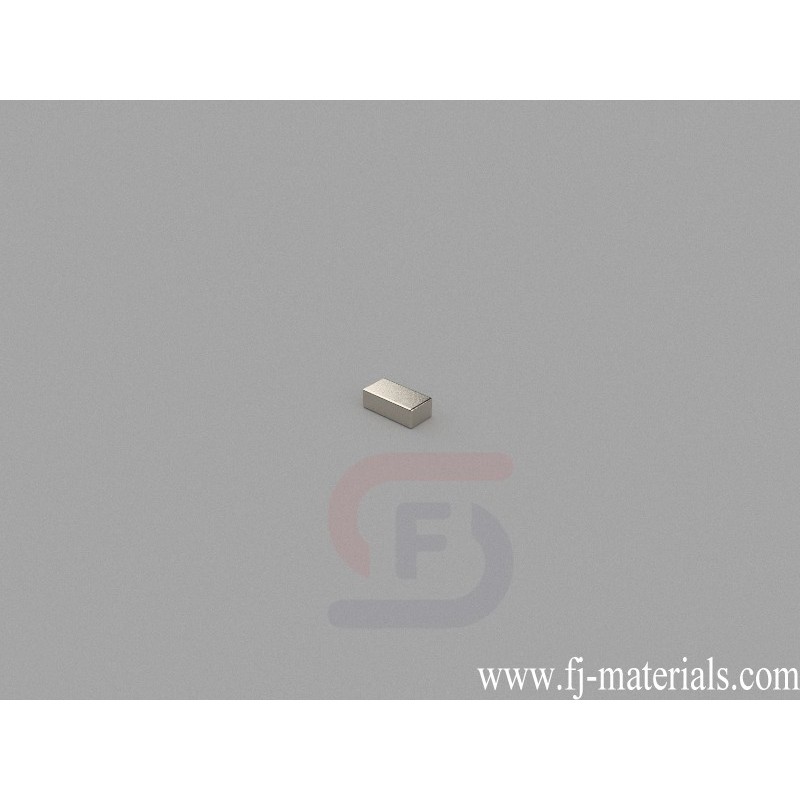

B-W2H1.34L4-N52BNi Neodymium Magnet, 4x2x1.34mm Block Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 4x2x1.34mm, Thru Thickness magnetized. Pull force is approximately 0.71 lbs (0.32kg).
B-W2H1.34L4-N52BNi Neodymium Block Magnets is made from high perfermance N52 NdFeB. The dimesion is 4x2x1.34mm, Black Nickel (BNi) coating. Pull force: 0.71 lbs (0.32kg). Magnetization direction: Through Thickness
B-W2H1.34L4-N52BNi Neodymium Magnet, 4x2x1.34mm Block Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 4x2x1.34mm, Thru Thickness magnetized. Pull force is approximately 0.71 lbs (0.32kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W2H1.34L4-N52BNi
Data sheet
- Item Number
- B-W2H1.34L4-N52BNi
- Material
- NdFeB
- Grade
- N52
- Size
- 4x2x1.34mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.080g
- Pull Force
- 0.71 lbs (0.32kg)
- Thickness
- A. 0.00-3.18mm
- Length
- B. 3.18-6.35mm
- Width
- A. 0.00-3.18mm
B-W2H1.34L4-N52BNi Neodymium Magnet, 4x2x1.34mm Block Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 4x2x1.34mm, Thru Thickness magnetized. Pull force is approximately 0.71 lbs (0.32kg).
