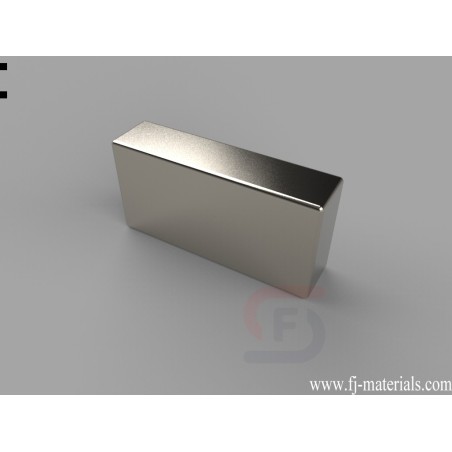

1 x 1/4 x 1/2 inch thick Block Magnets | BX048

BX048 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/4" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 18.71 lbs.

Yiwu Fenjiao E-commerce Firm supply BX048 Neodymium Block Magnets with high quality at competitive price.

BX048 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/4" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 18.71 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BX048

Data sheet

Item Number
BX048
Material
NdFeB
Grade
N42
Size
1" x 1/4" x 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.542 oz. (15.37 g)
Pull Force
18.71 lbs
Thickness
D. 9.53-12.7mm
Length
F. 19.05-25.4mm
Width
B. 3.18-6.35mm
