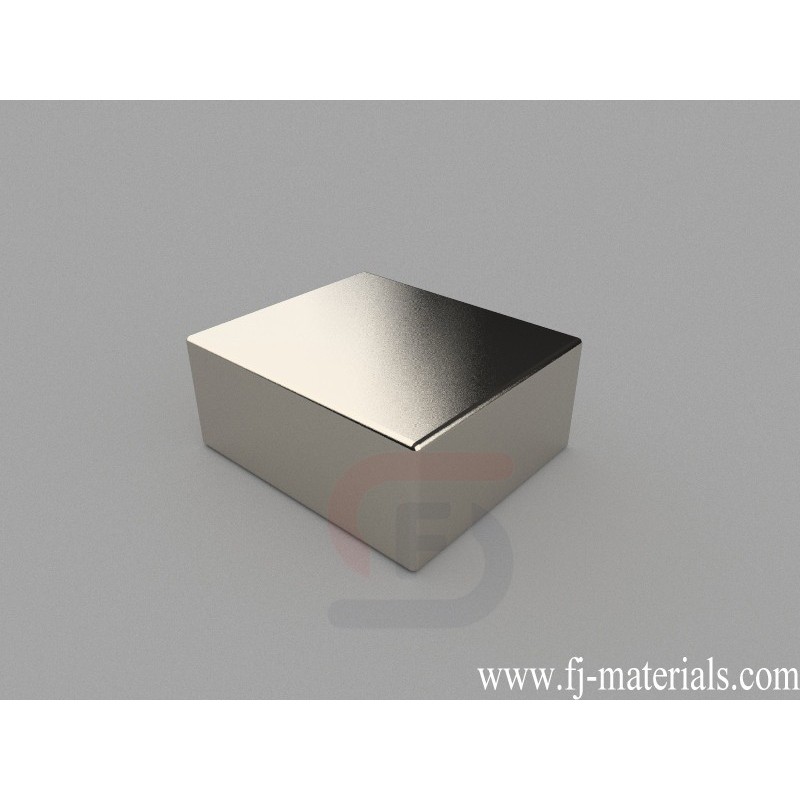

35x30x15mm Block Magnets | B-W30H15L35-N50H
B-W30H15L35-N50H Neodymium Magnet, 35x30x15mm Block Magnet is made of Grade N50H NdFeB, Nickel Plated. The dimension is 35x30x15mm, Thru Thickness magnetized. Pull force is approximately 91.87 lbs (41.76kg).
B-W30H15L35-N50H Neodymium Block Magnets is made from high perfermance N50H NdFeB. The dimesion is 35x30x15mm, Ni-Cu-Ni (Nickel) coating. Pull force: 91.87 lbs (41.76kg). Magnetization direction: Through Thickness
B-W30H15L35-N50H Neodymium Magnet, 35x30x15mm Block Magnet is made of Grade N50H NdFeB, Nickel Plated. The dimension is 35x30x15mm, Thru Thickness magnetized. Pull force is approximately 91.87 lbs (41.76kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W30H15L35-N50H
Data sheet
- Item Number
- B-W30H15L35-N50H
- Material
- NdFeB
- Grade
- N50H
- Size
- 35x30x15mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 118.125g
- Pull Force
- 91.87 lbs (41.76kg)
- Thickness
- E. 12.7-19.05mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B-W30H15L35-N50H Neodymium Magnet, 35x30x15mm Block Magnet is made of Grade N50H NdFeB, Nickel Plated. The dimension is 35x30x15mm, Thru Thickness magnetized. Pull force is approximately 91.87 lbs (41.76kg).
