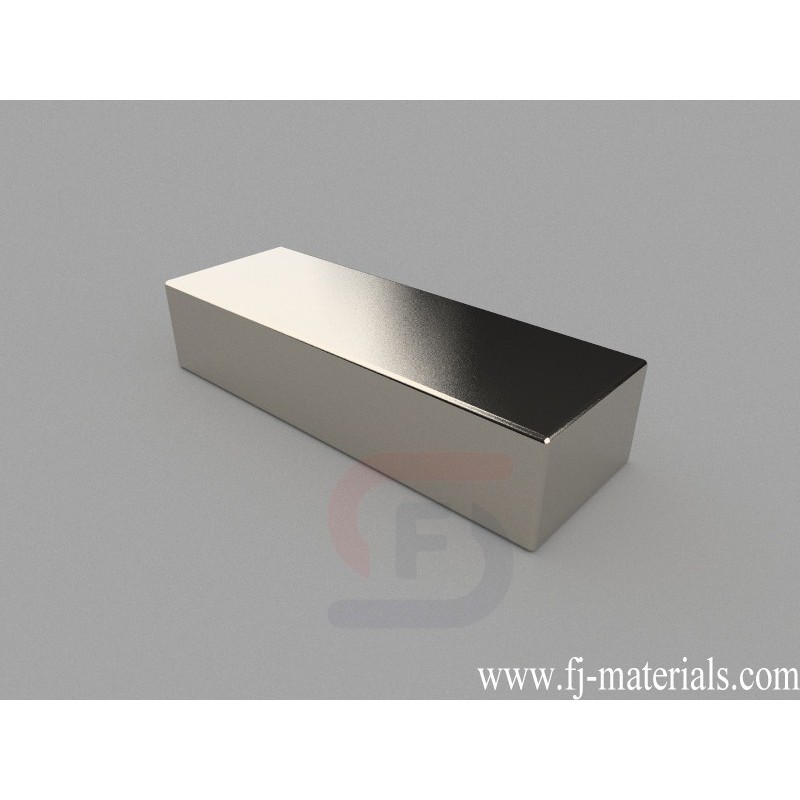

100x35x22mm Block Magnets | B-W35H22L100-N45
B-W35H22L100-N45 Neodymium Magnet, 100x35x22mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 100x35x22mm, Thru Thickness magnetized. Pull force is approximately 216.42 lbs (98.37kg).
B-W35H22L100-N45 Neodymium Block Magnets is made from high perfermance N45 NdFeB. The dimesion is 100x35x22mm, Ni-Cu-Ni (Nickel) coating. Pull force: 216.42 lbs (98.37kg). Magnetization direction: Through Thickness
B-W35H22L100-N45 Neodymium Magnet, 100x35x22mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 100x35x22mm, Thru Thickness magnetized. Pull force is approximately 216.42 lbs (98.37kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W35H22L100-N45
Data sheet
- Item Number
- B-W35H22L100-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 100x35x22mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 577.500g
- Pull Force
- 216.42 lbs (98.37kg)
- Thickness
- F. 19.05-25.4mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
B-W35H22L100-N45 Neodymium Magnet, 100x35x22mm Block Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 100x35x22mm, Thru Thickness magnetized. Pull force is approximately 216.42 lbs (98.37kg).
