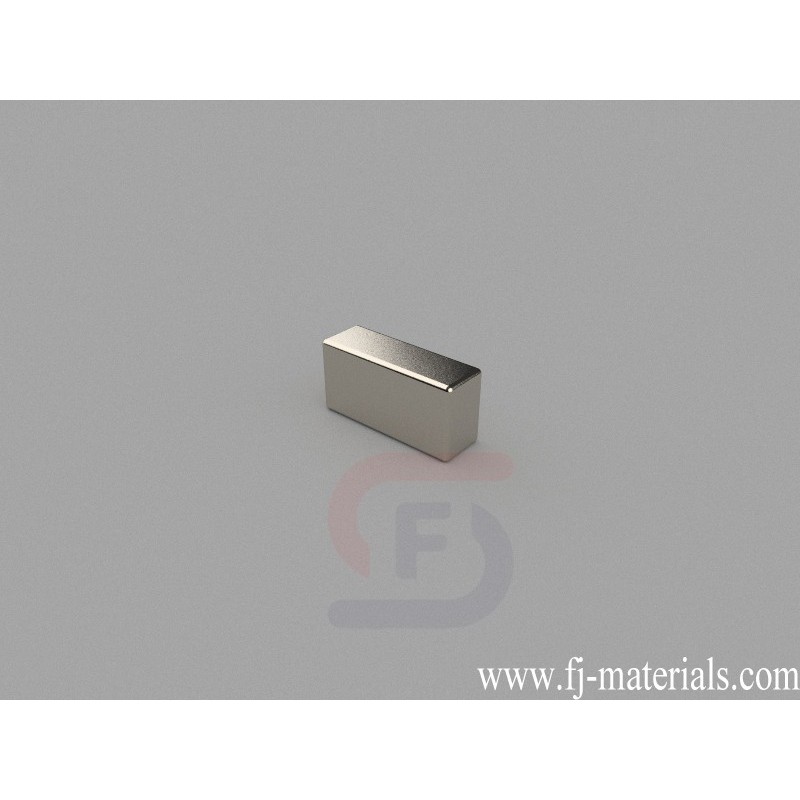

12x4x6mm Block Magnets | B-W4H6L12-N48ME
B-W4H6L12-N48ME Neodymium Magnet, 12x4x6mm Block Magnet is made of Grade N48M NdFeB, Black Epoxy. The dimension is 12x4x6mm, Thru Thickness magnetized. Pull force is approximately 7.54 lbs (3.43kg).
B-W4H6L12-N48ME Neodymium Block Magnets is made from high perfermance N48M NdFeB. The dimesion is 12x4x6mm, Epoxy coating. Pull force: 7.54 lbs (3.43kg). Magnetization direction: Through Thickness
B-W4H6L12-N48ME Neodymium Magnet, 12x4x6mm Block Magnet is made of Grade N48M NdFeB, Black Epoxy. The dimension is 12x4x6mm, Thru Thickness magnetized. Pull force is approximately 7.54 lbs (3.43kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W4H6L12-N48ME
Data sheet
- Item Number
- B-W4H6L12-N48ME
- Material
- NdFeB
- Grade
- N48M
- Size
- 12x4x6mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Epoxy
- Magnetization Direction
- Thru Thickness
- Weight
- 2.160g
- Pull Force
- 7.54 lbs (3.43kg)
- Thickness
- B. 3.18-6.35mm
- Length
- D. 9.53-12.7mm
- Width
- B. 3.18-6.35mm
B-W4H6L12-N48ME Neodymium Magnet, 12x4x6mm Block Magnet is made of Grade N48M NdFeB, Black Epoxy. The dimension is 12x4x6mm, Thru Thickness magnetized. Pull force is approximately 7.54 lbs (3.43kg).
